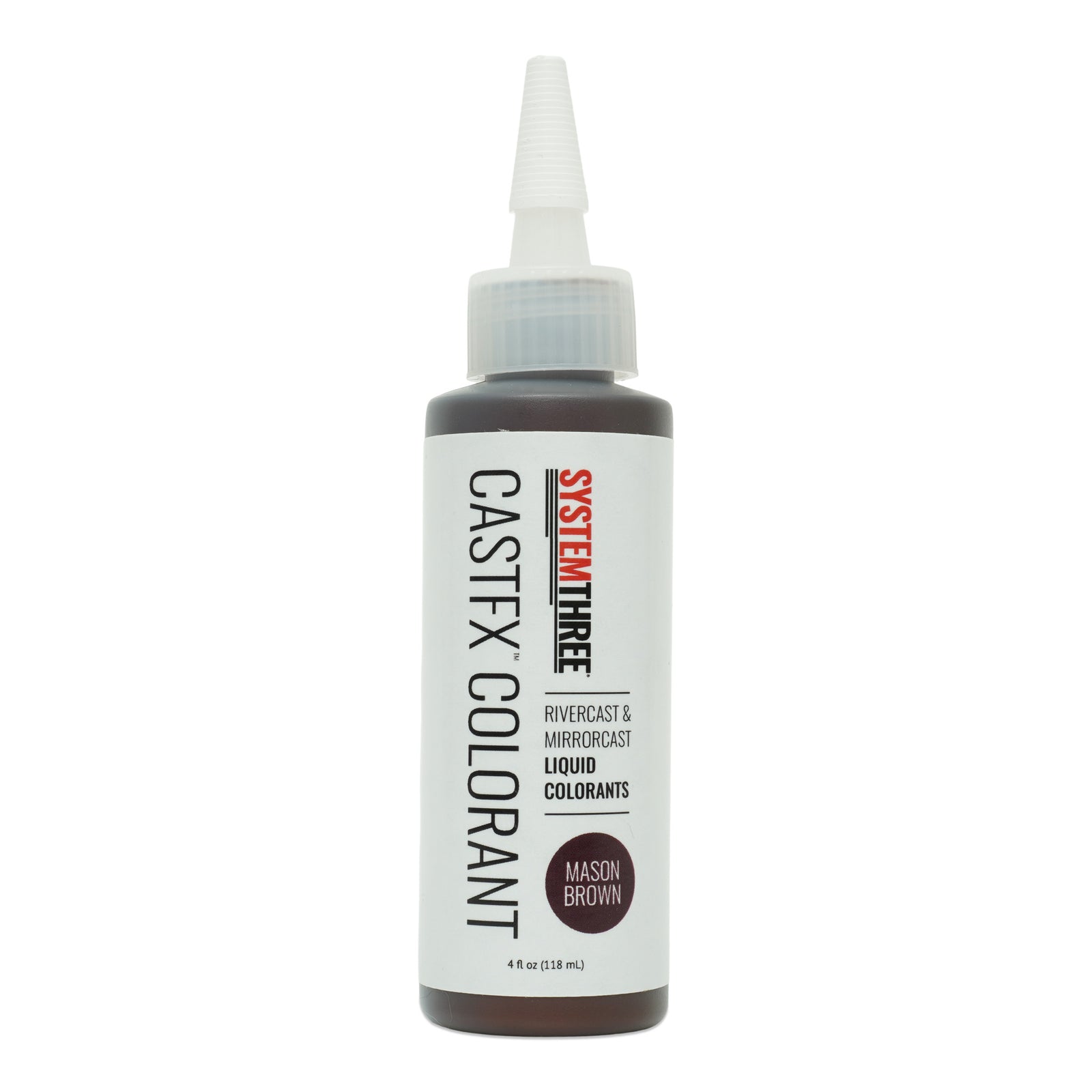

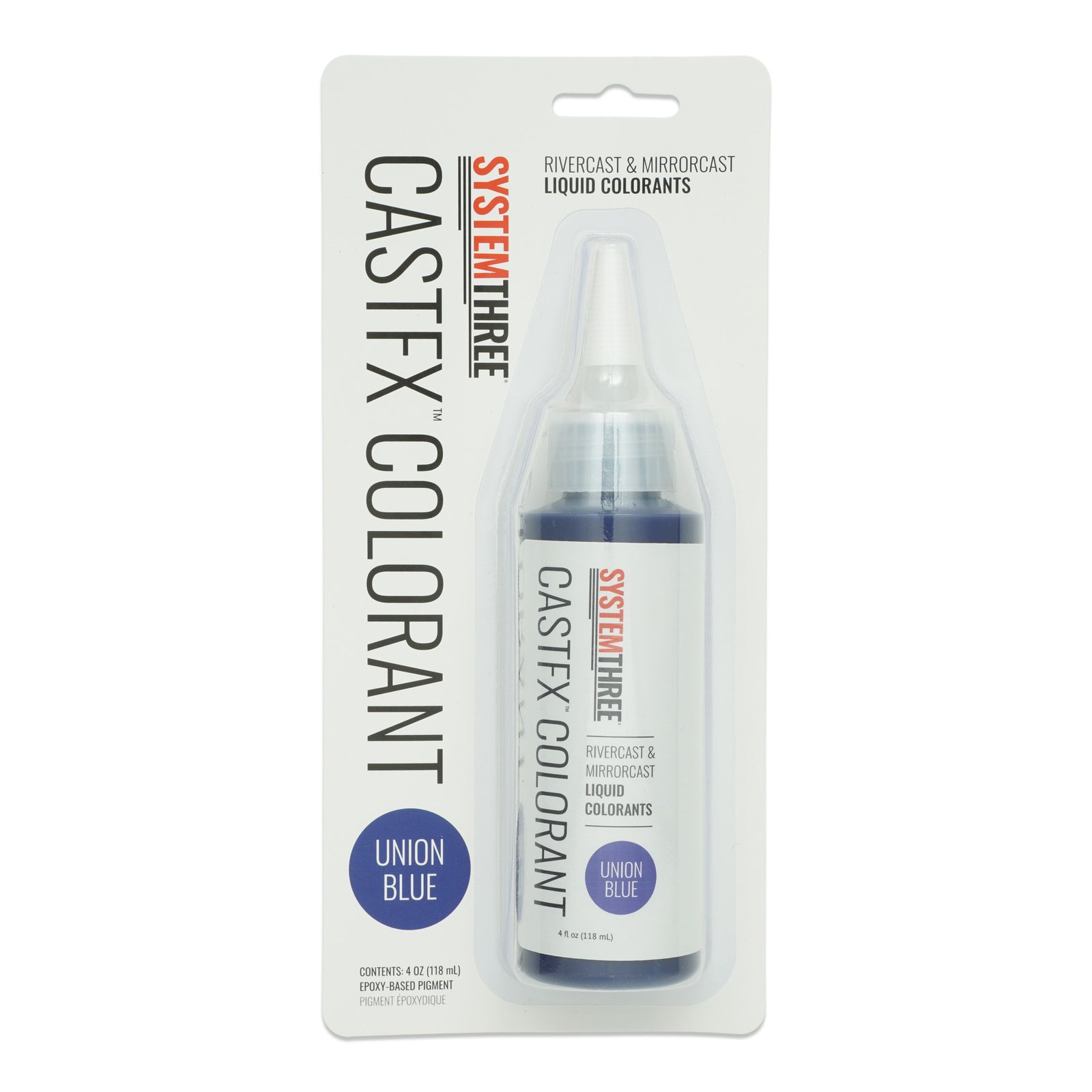

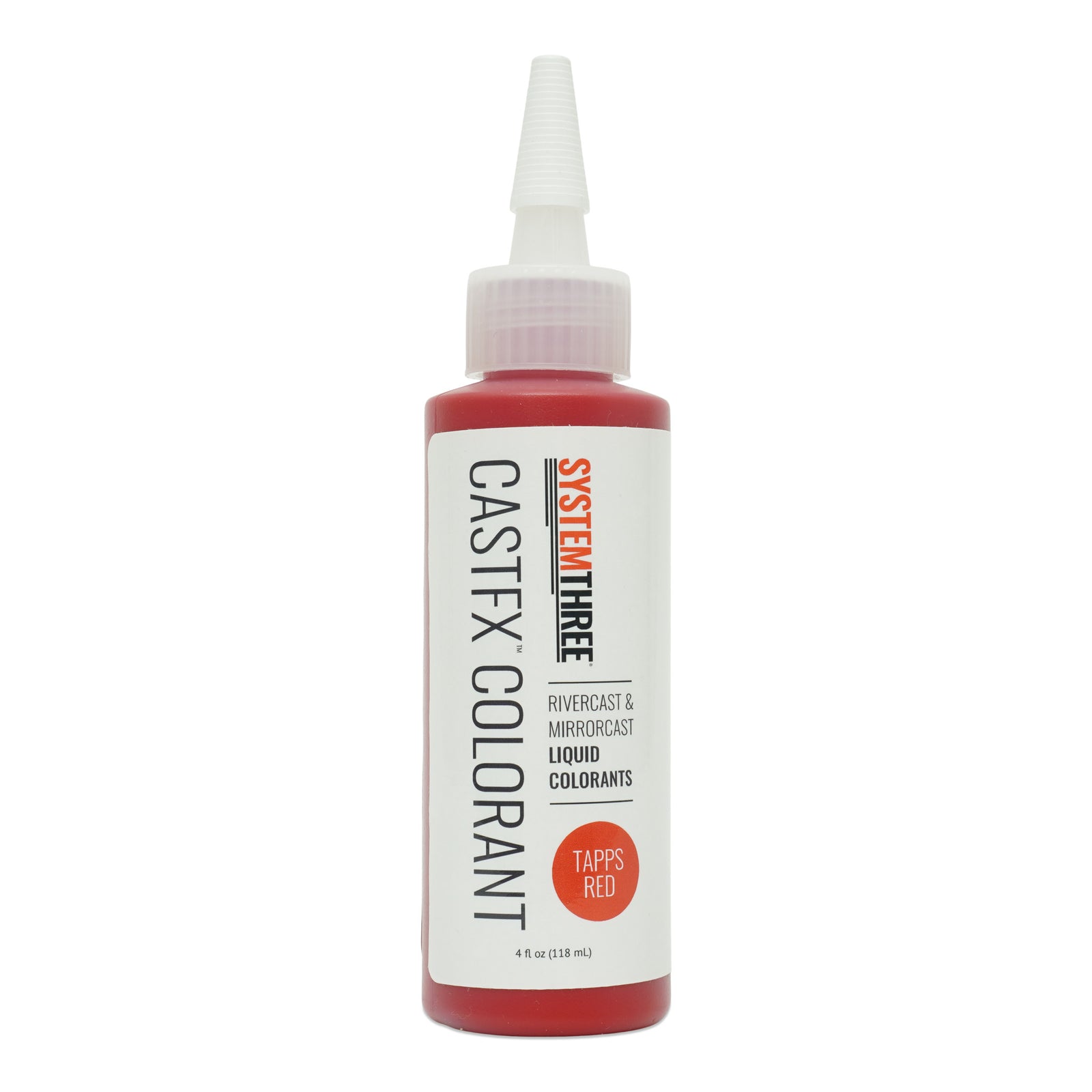

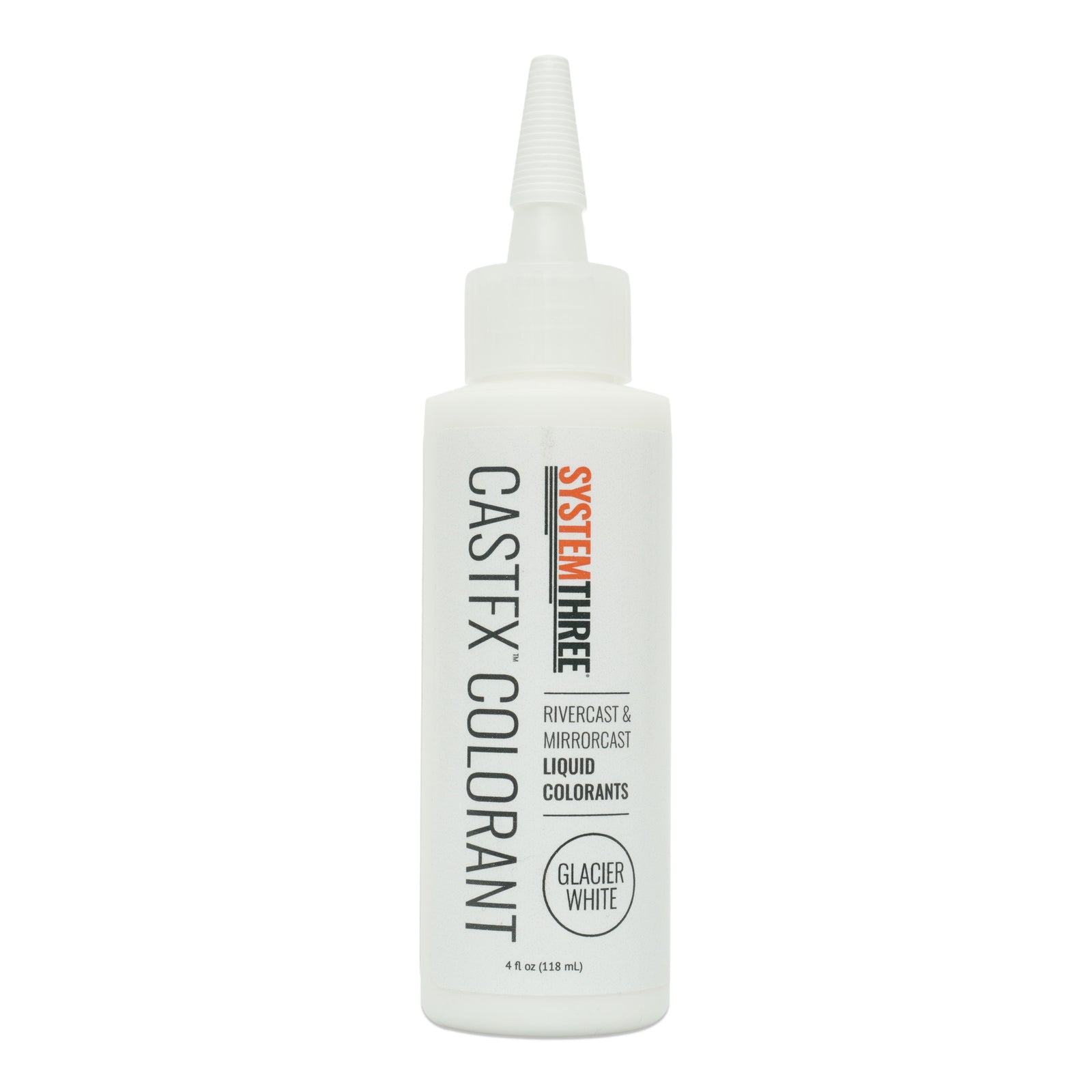

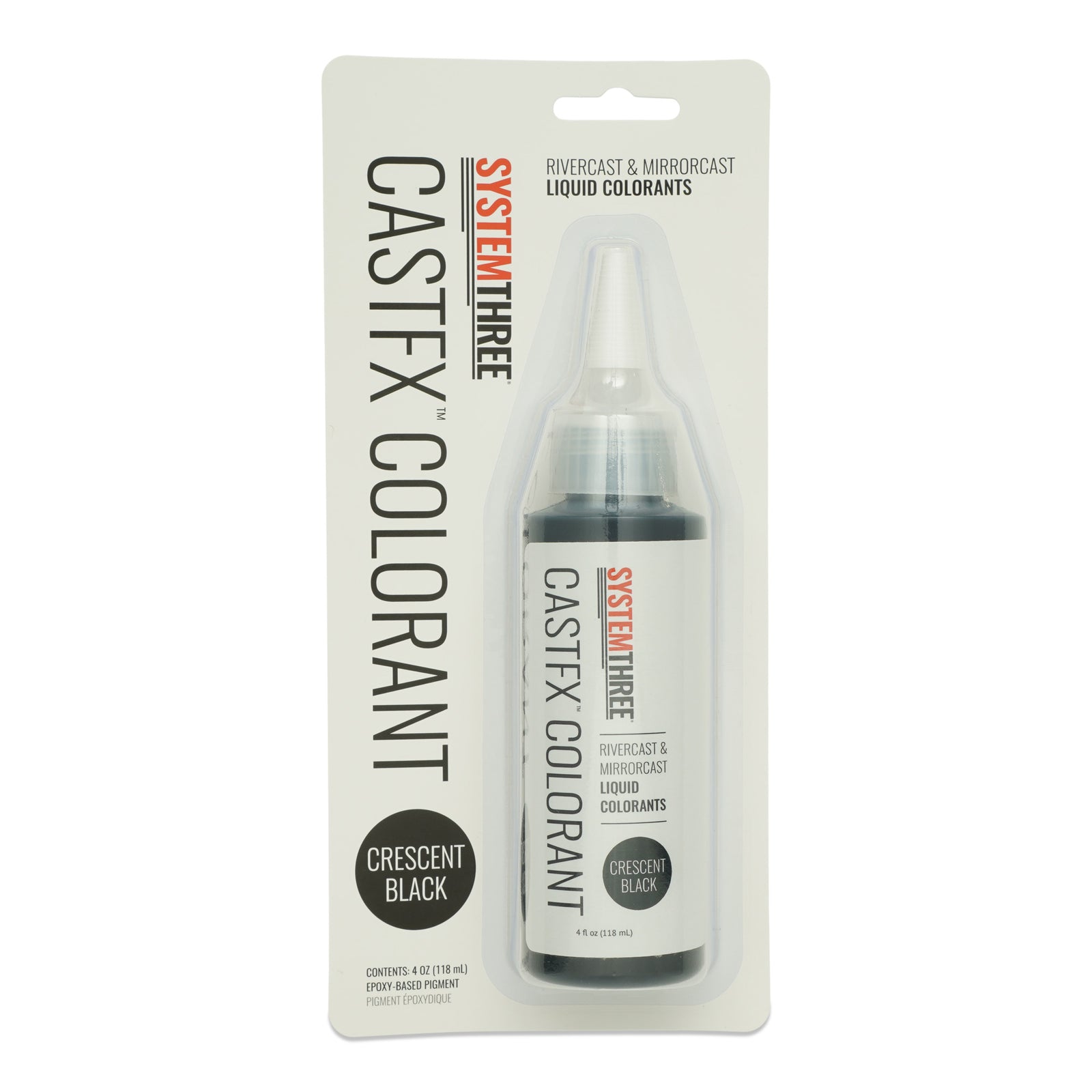

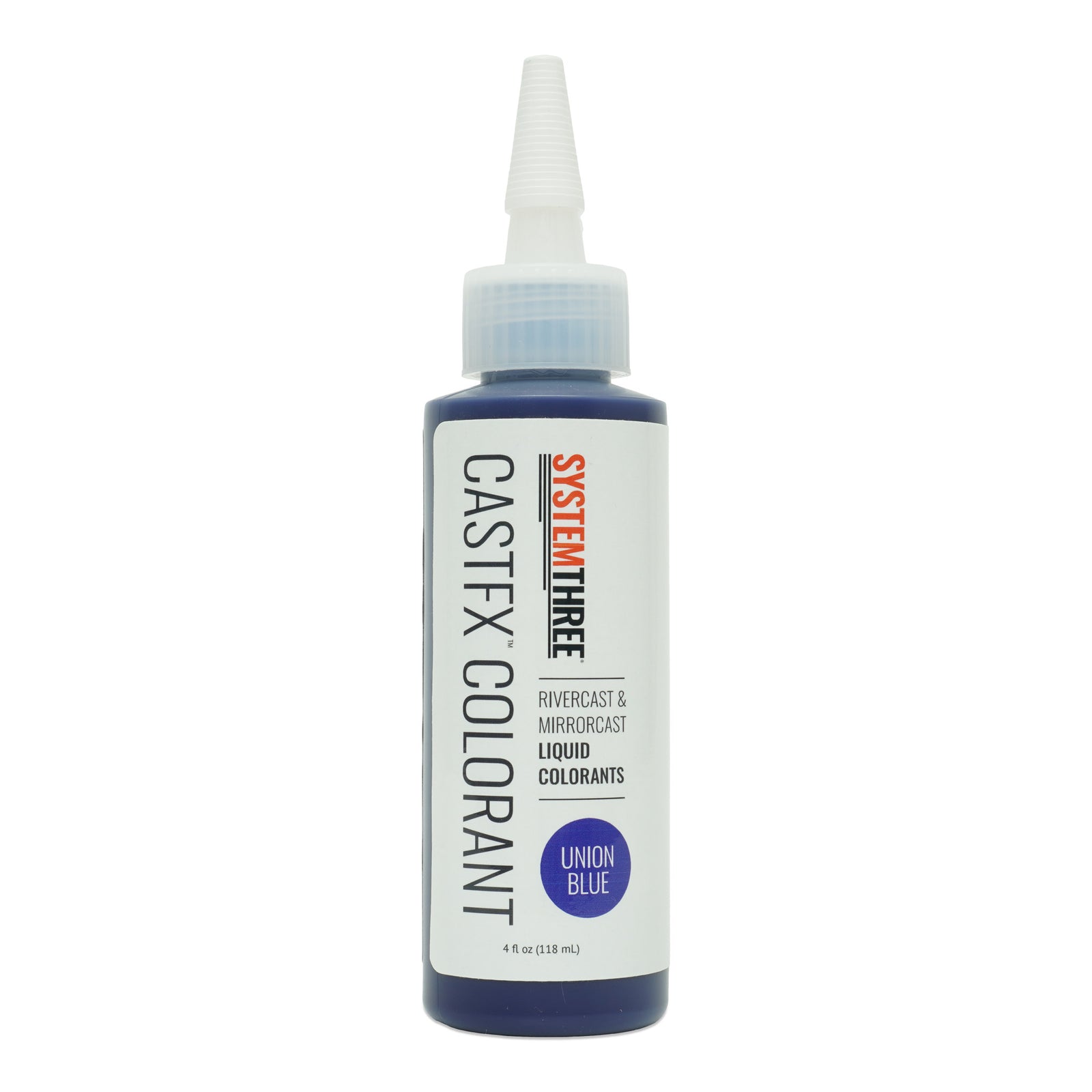

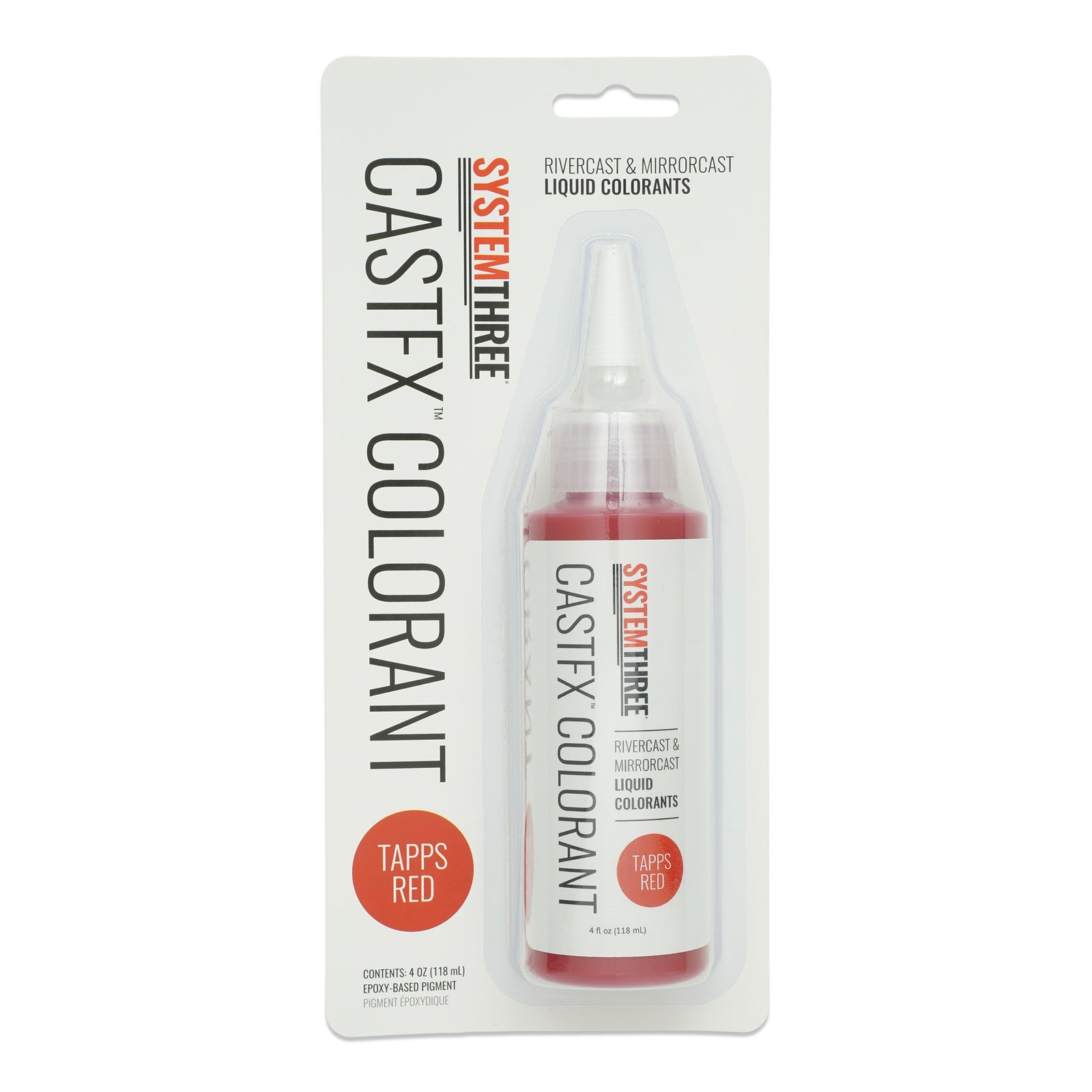

CastFX Liquid Colorant

We offer a few options for creating colors with your epoxy project.

Epoxy Pigment Concentrates:

Epoxy Pigment Concentrates are specifically formulated for all System Three liquid epoxy resins. They are available in 7 standard colors and can be blended with each other to create additional colors. Simply add the pigment concentrate to the Resin (Part A), then mix the now pigmented resin at the specified ratio with the Hardener (Part B). The Epoxy Pigment Concentrates can be added up to 10% by volume to achieve full thin-film opacity without changing the performance of the cured product.

CastFX Liquid Colorants:

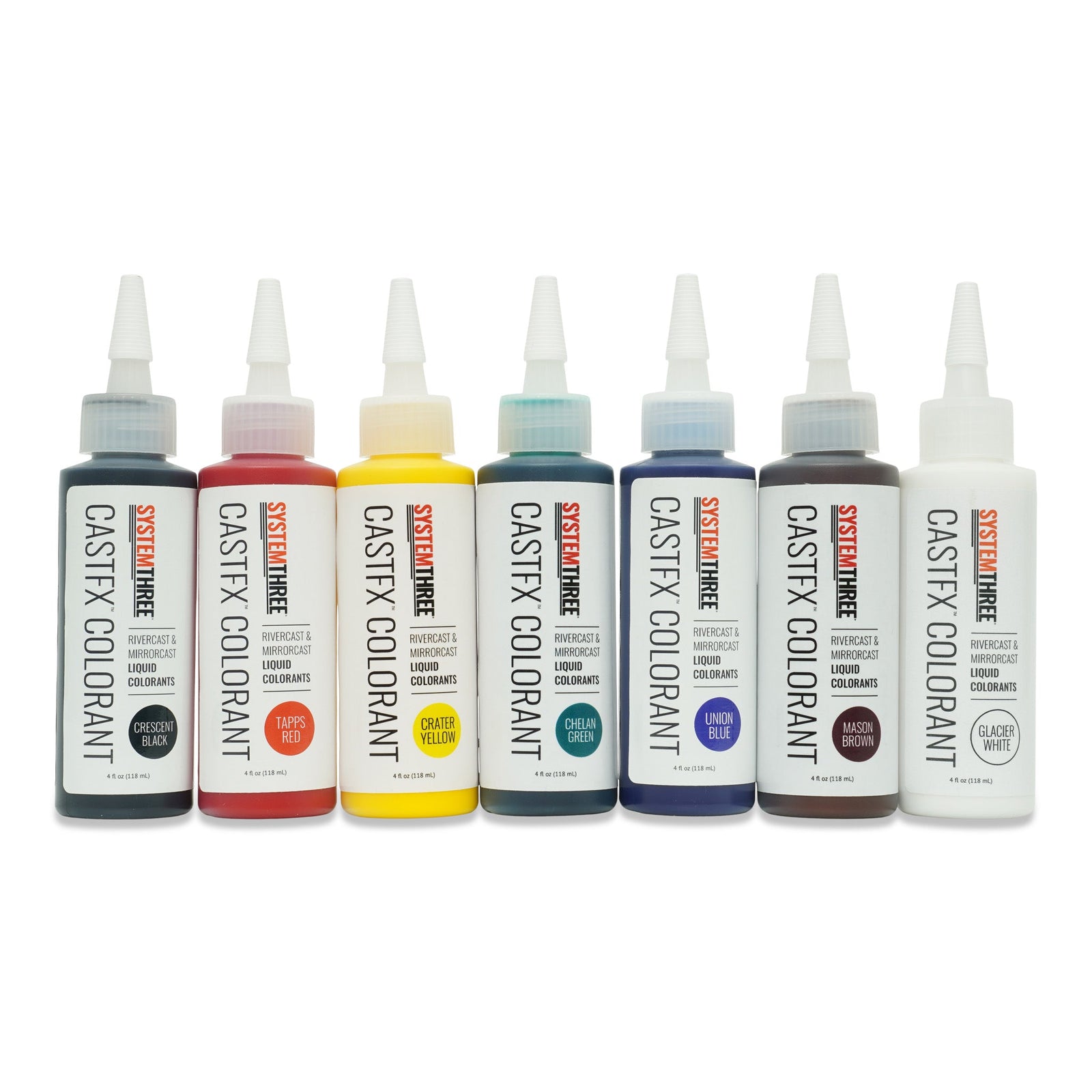

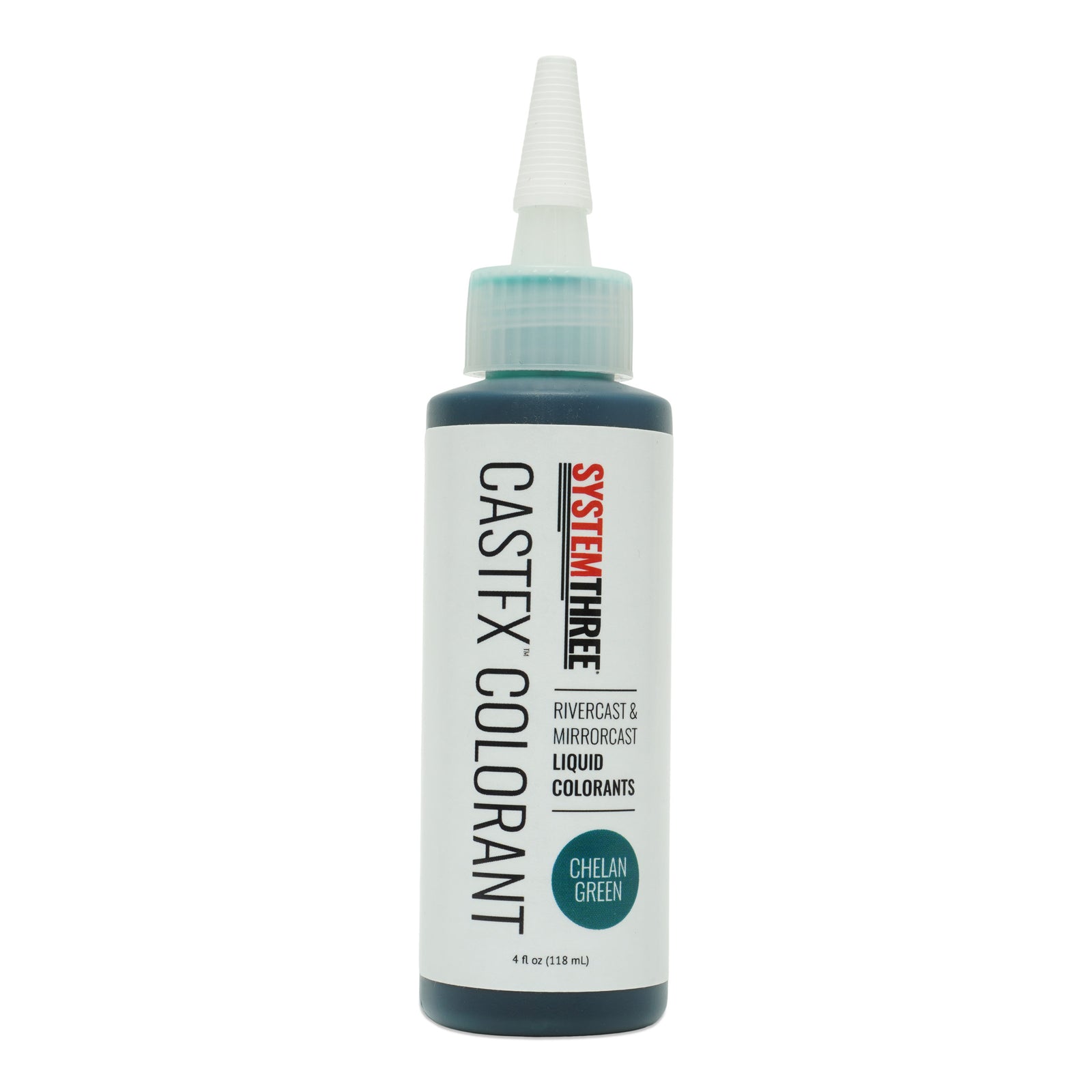

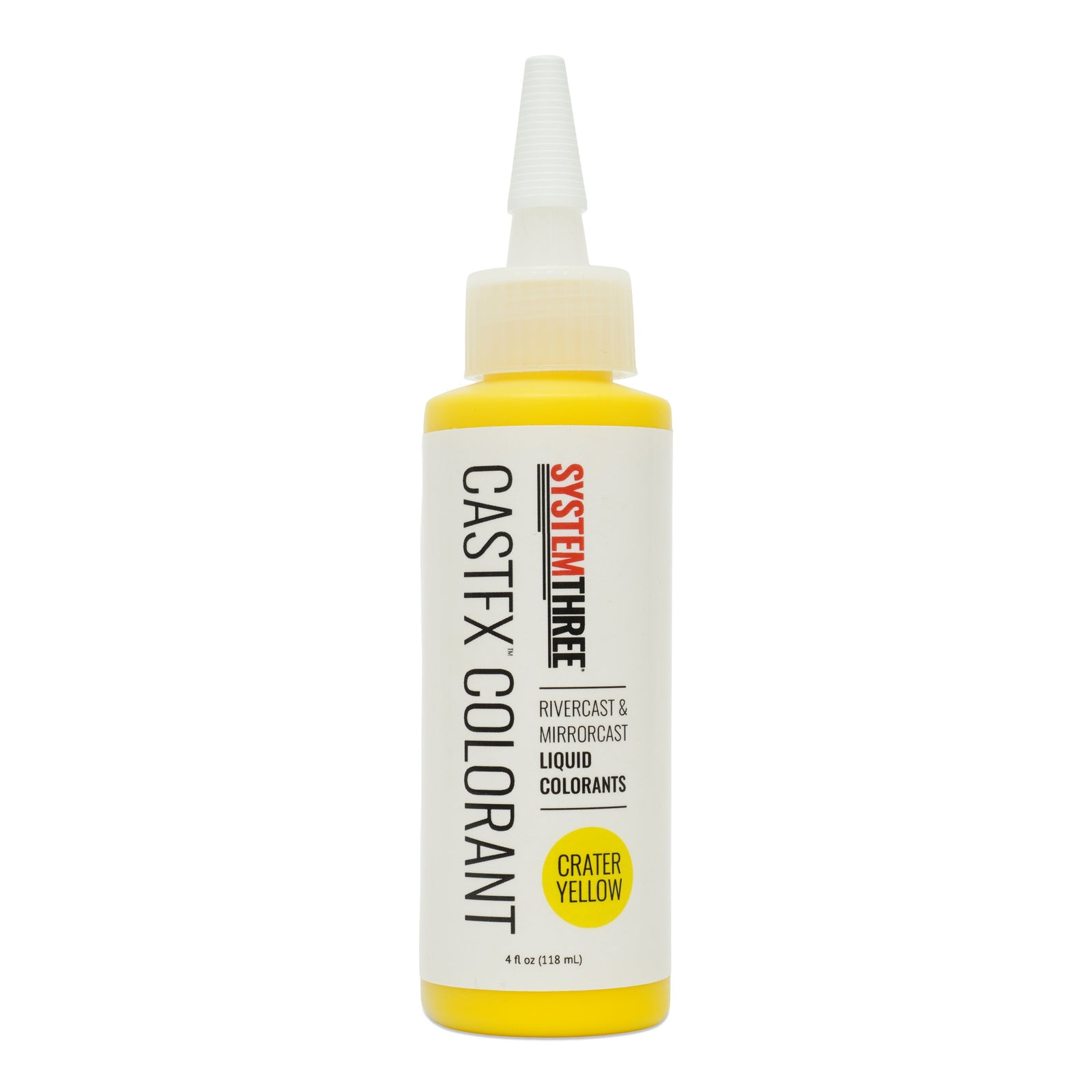

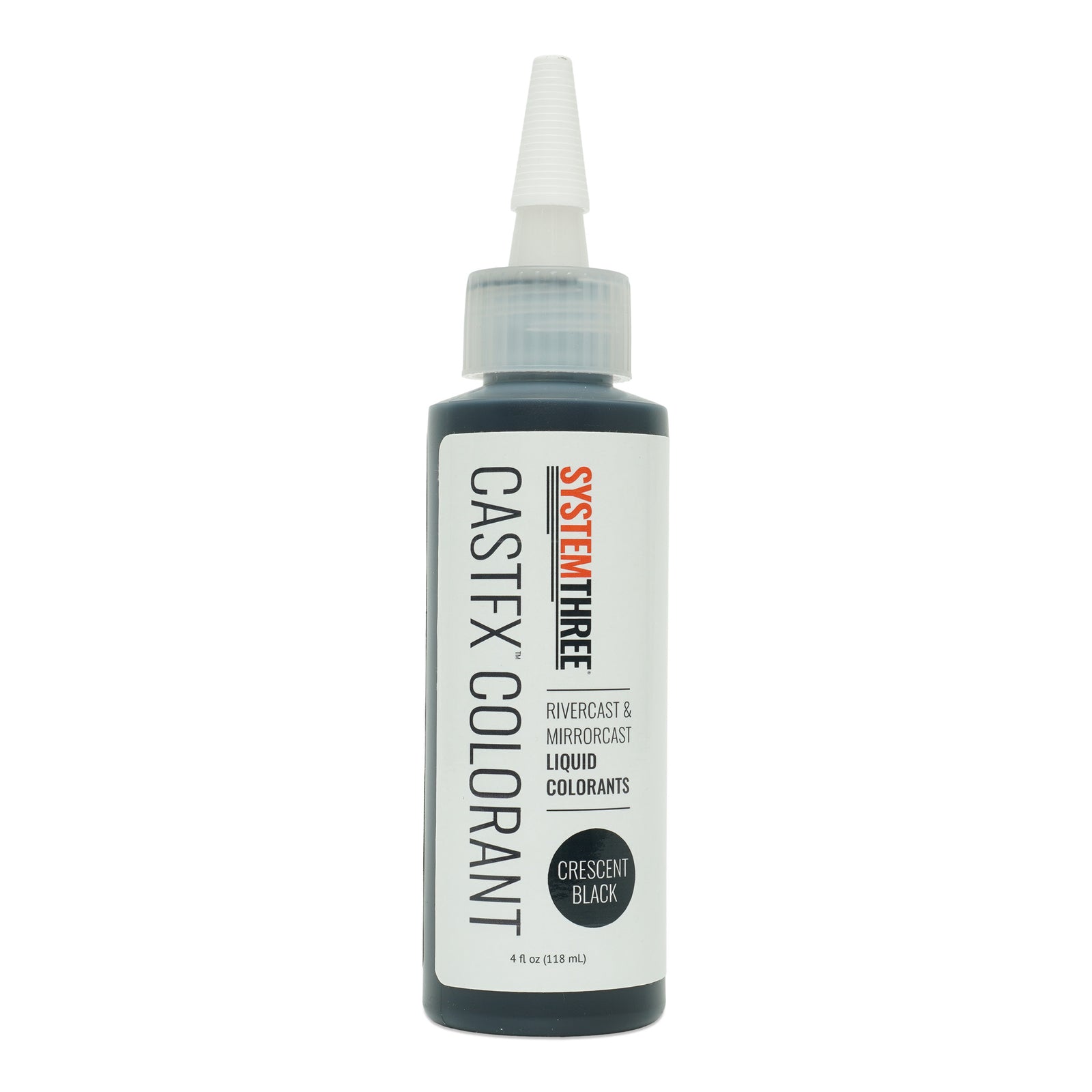

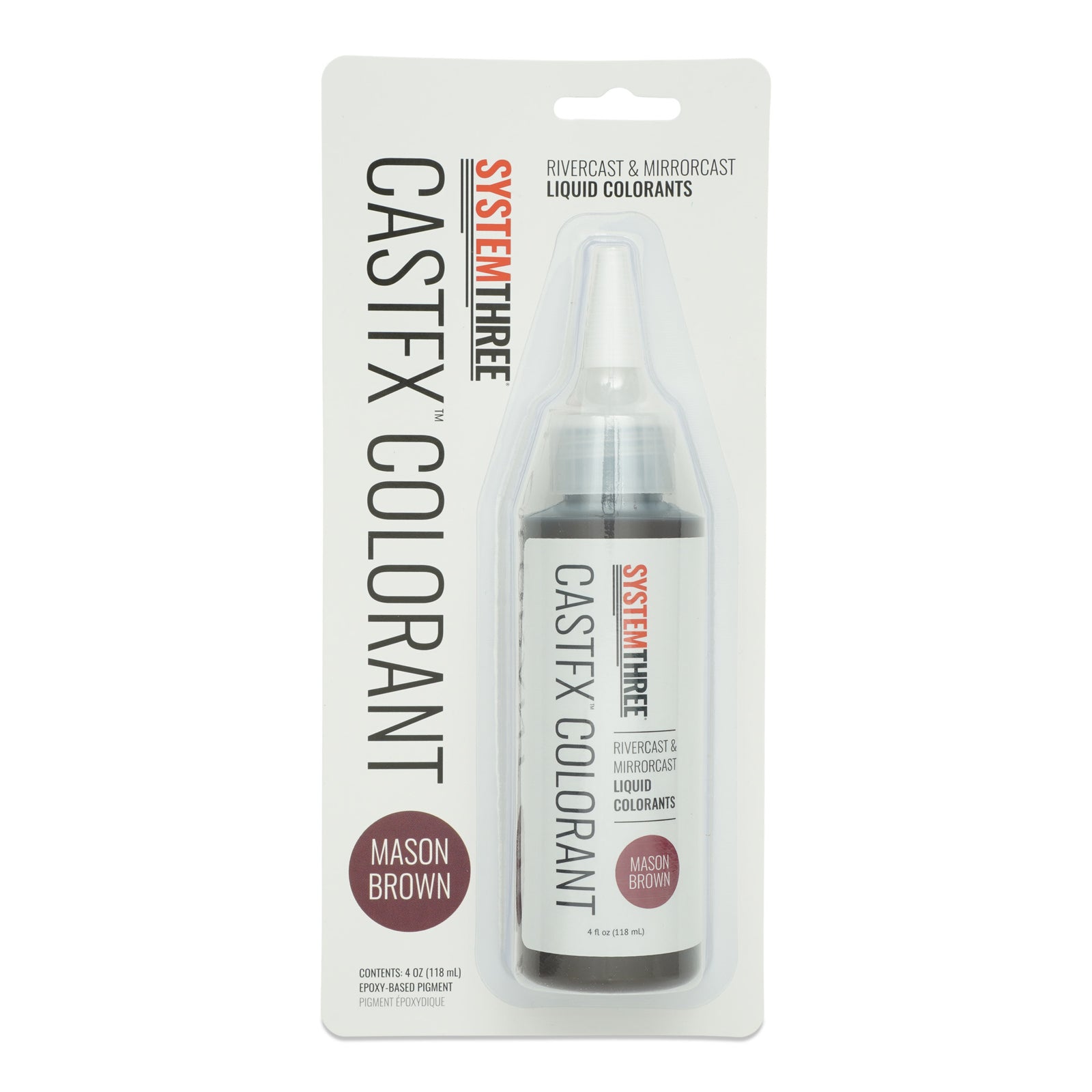

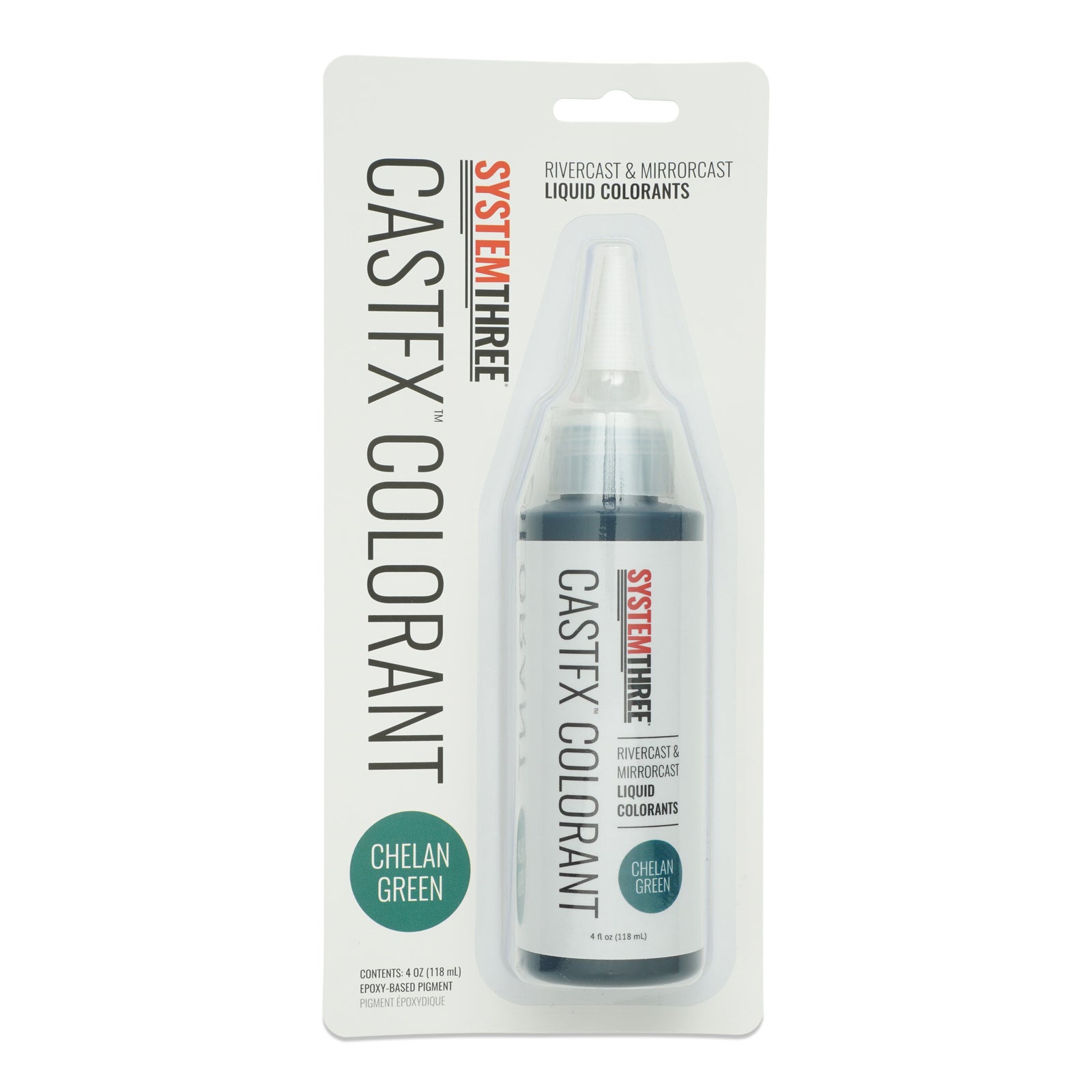

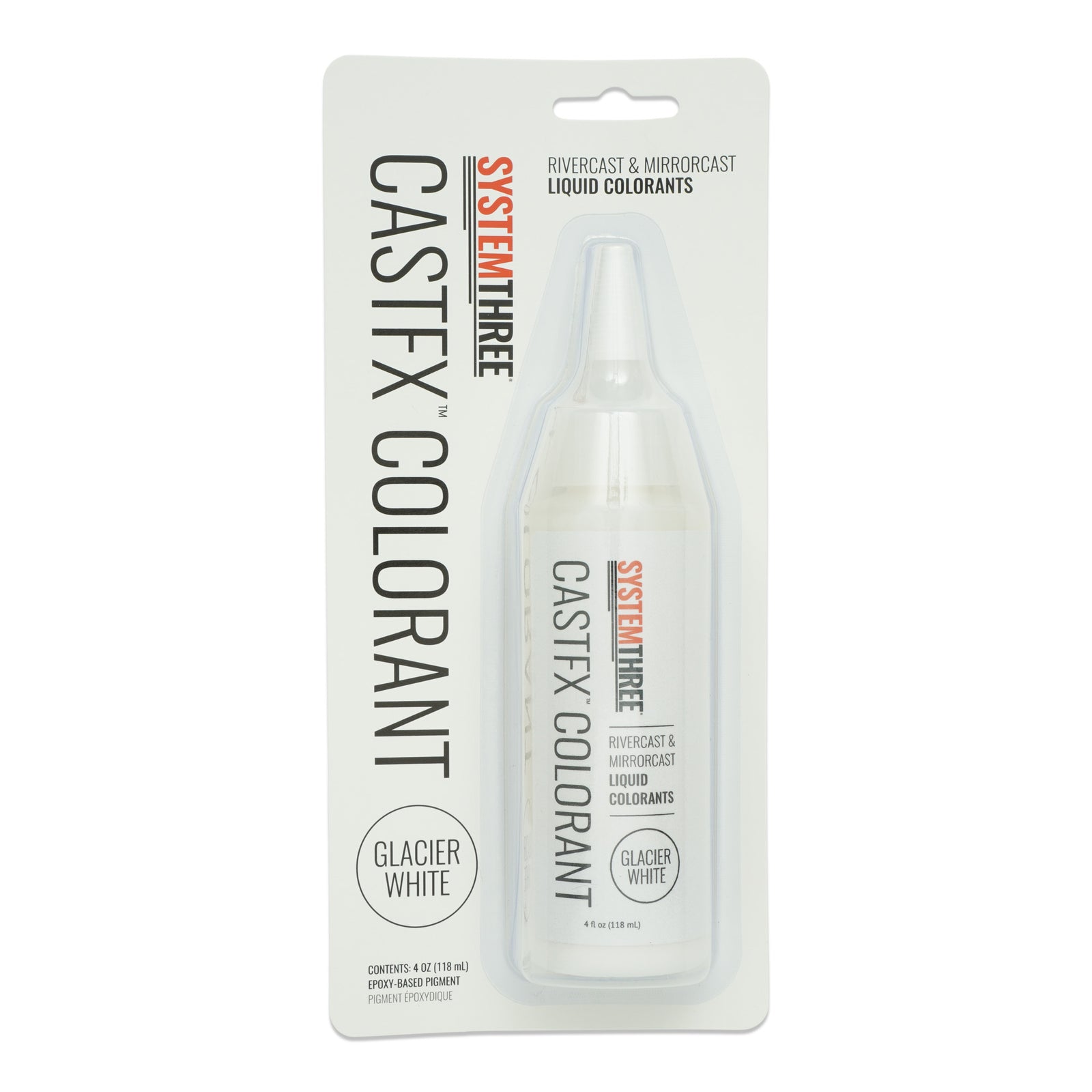

CastFX Liquid Colorants are designed to work specifically with System Three RiverCast, MirrorCast, and MirrorCoat. Add a little for a transparent effect or add up to 4 ounces per mixed gallon for complete opacity of your casting project. CastFx Liquid Colorants can be intermixed with one another to create your own unique color blend and blended with CastFX Dry Metallic Pigments to create stunning, one-of-a-kind effects.

CastFX Dry Metallic Pigments:

CastFX Dry Metallic Pigments are powders that can be added directly to System Three RiverCast, MirrorCast, and MirrorCoat. These Pigments are non-reactive and can be incorporated into the mixed epoxy at any ratio. CastFX Dry Metallic Pigments add a stunning pearlescent effect to our resin systems and can be intermixed with one another or blended with Cast FX Liquid Colorant to create your own unique color blend.

Other colorants, dry pigments, and dyes have been shown to be compatible with the System Three products. You should always test other supplier's colorant material to ensure you are happy with the results before using it with a System Three Epoxy.

The CastFX Liquid Colorants are simply a diluted version of the Epoxy Pigment Concentrates. They provide great versatility as opaque colors and transparent tints can be easily achieved. They are also significantly easier to work with as they are thinner than the concentrates.

Epoxy Pigment Concentrates are heavily pigmented coloring options. They are ideal for achieving full opacity (hide) in thin film applications.

How opaque the epoxy appears is determined by the amount of pigment that is added and how thick the epoxy is applied. The more pigment that is added and the thicker the epoxy is applied, the more opaque it will appear.

- To create a color that is still transparent use our CastFX Liquid Colorant and add just a few drops (1/8tsp per 10 oz) of mixed epoxy.

- To achieve full opacity for coating applications, add the Cast FX liquid Colorant at 10% by volume or 12oz per mixed gallon of epoxy. The Epoxy Pigment Concentrates are also a good choice for achieving full opacity in thin coat applications.

- To achieve full opacity for casting applications, add the Cast FX Liquid colorant at 4oz per mixed gallon of epoxy.
