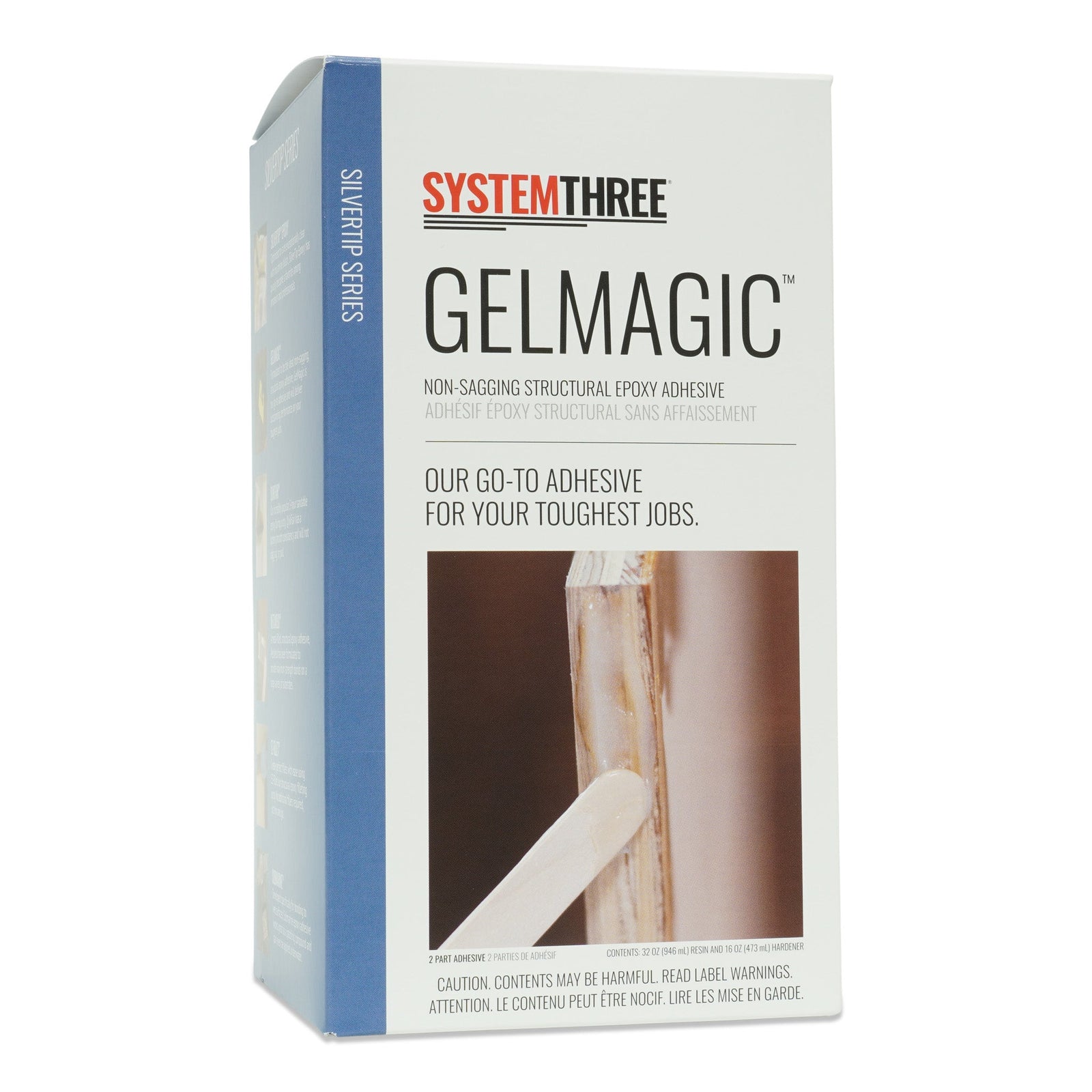

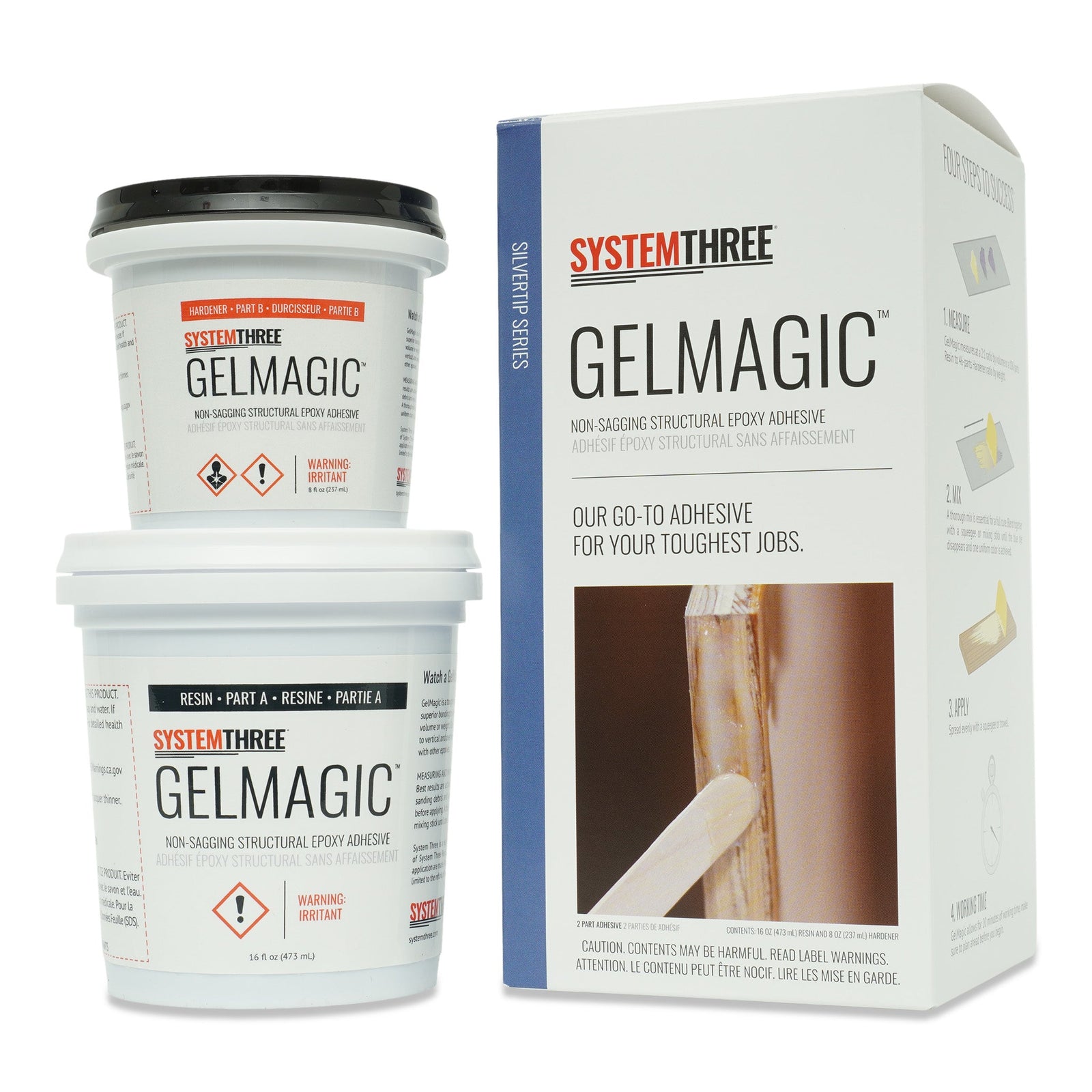

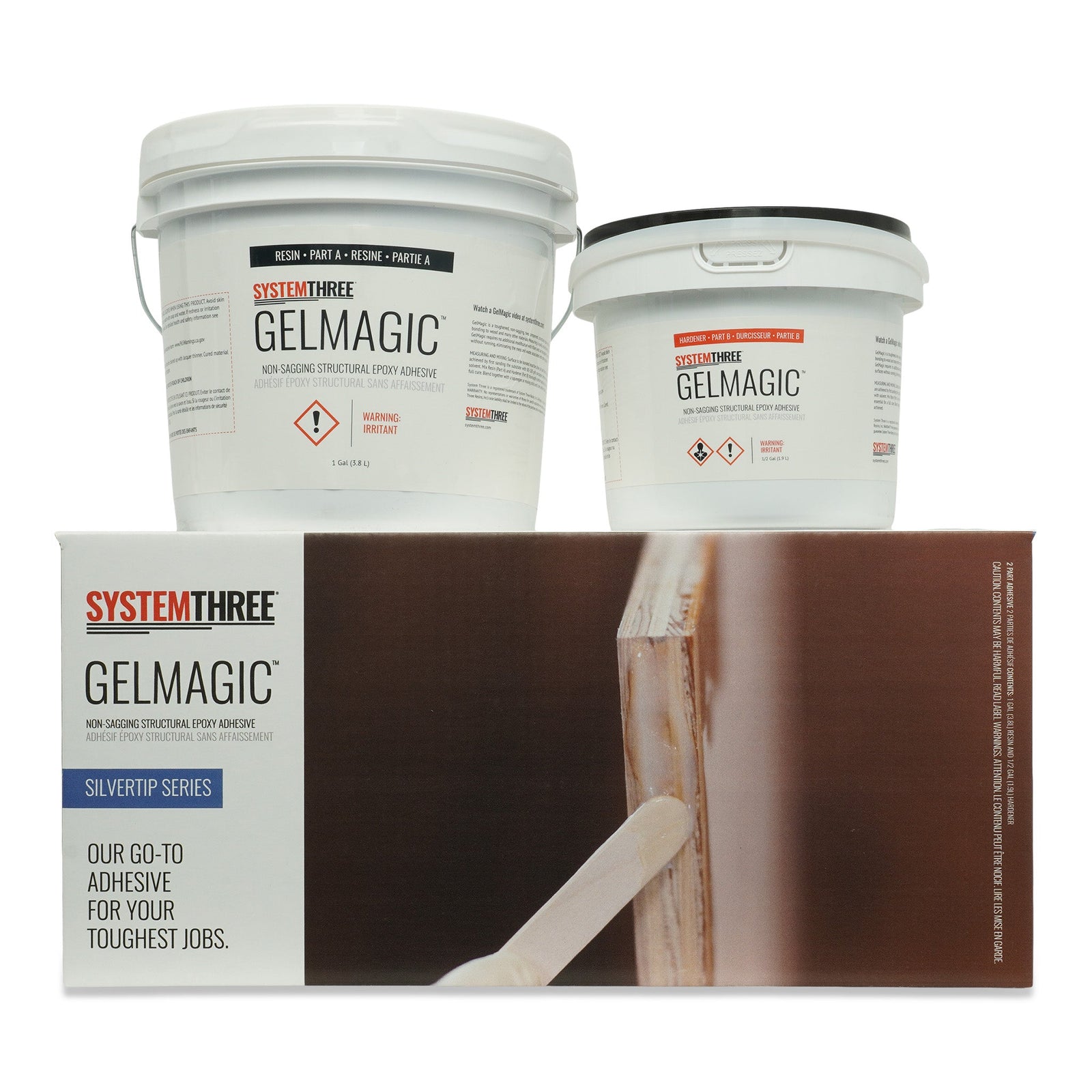

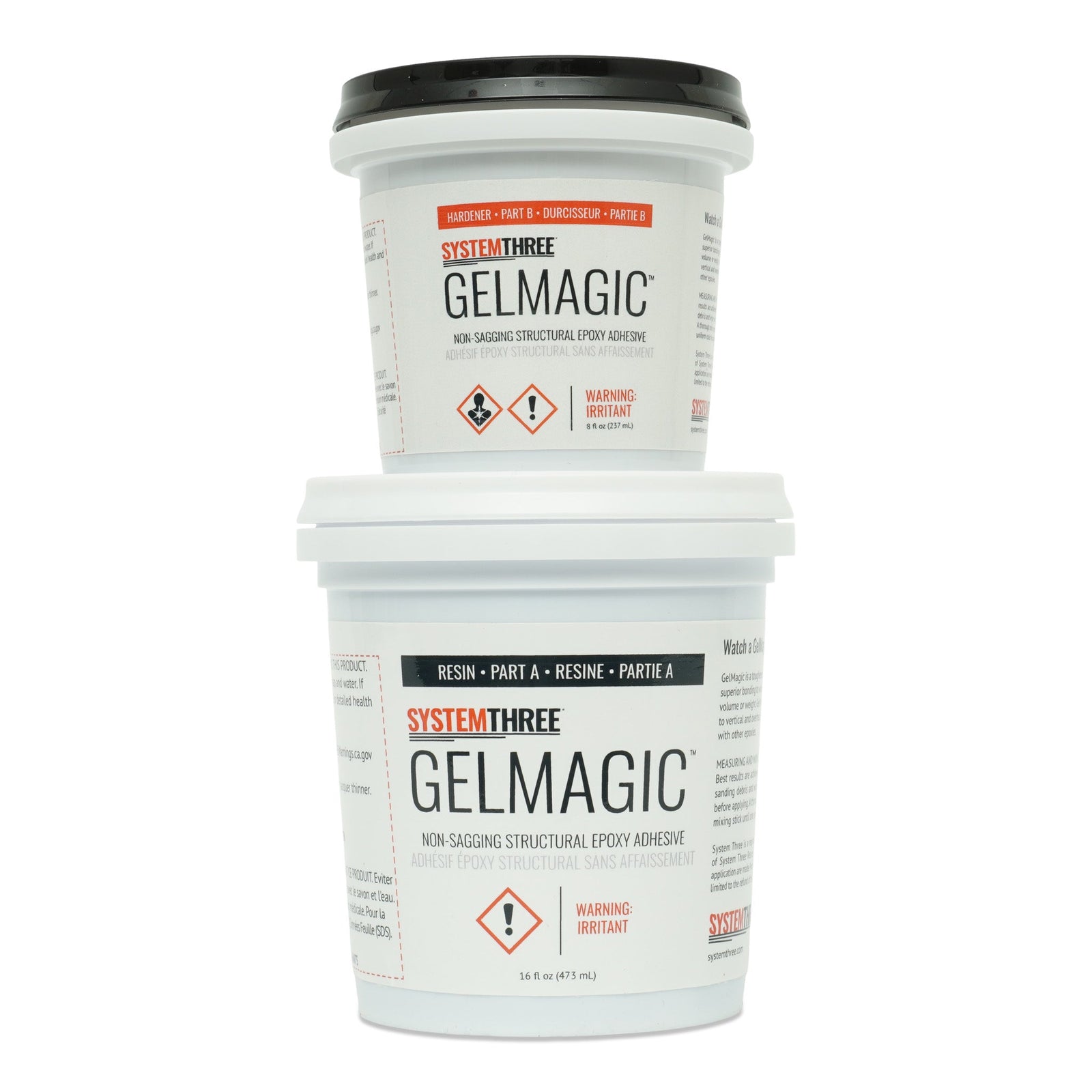

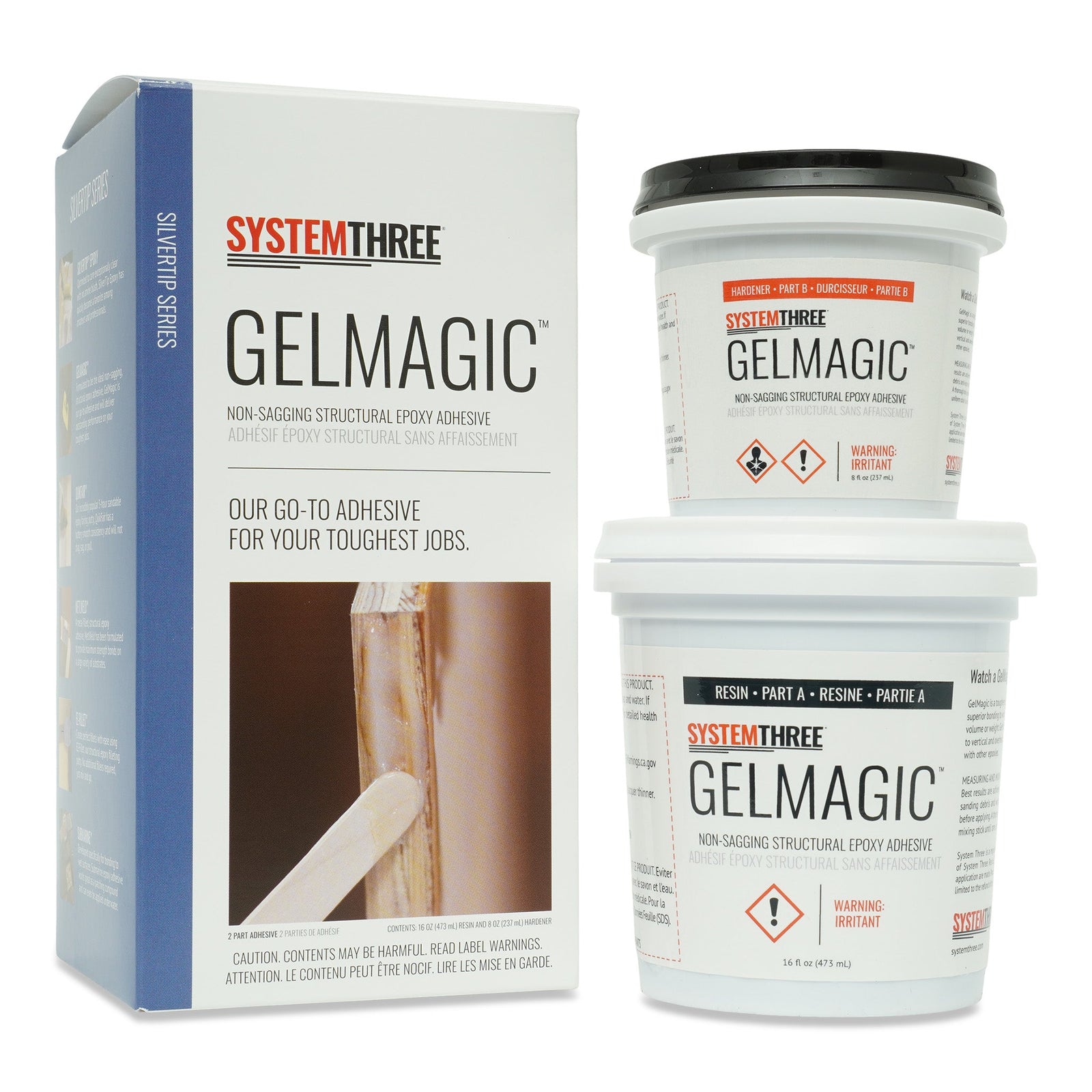

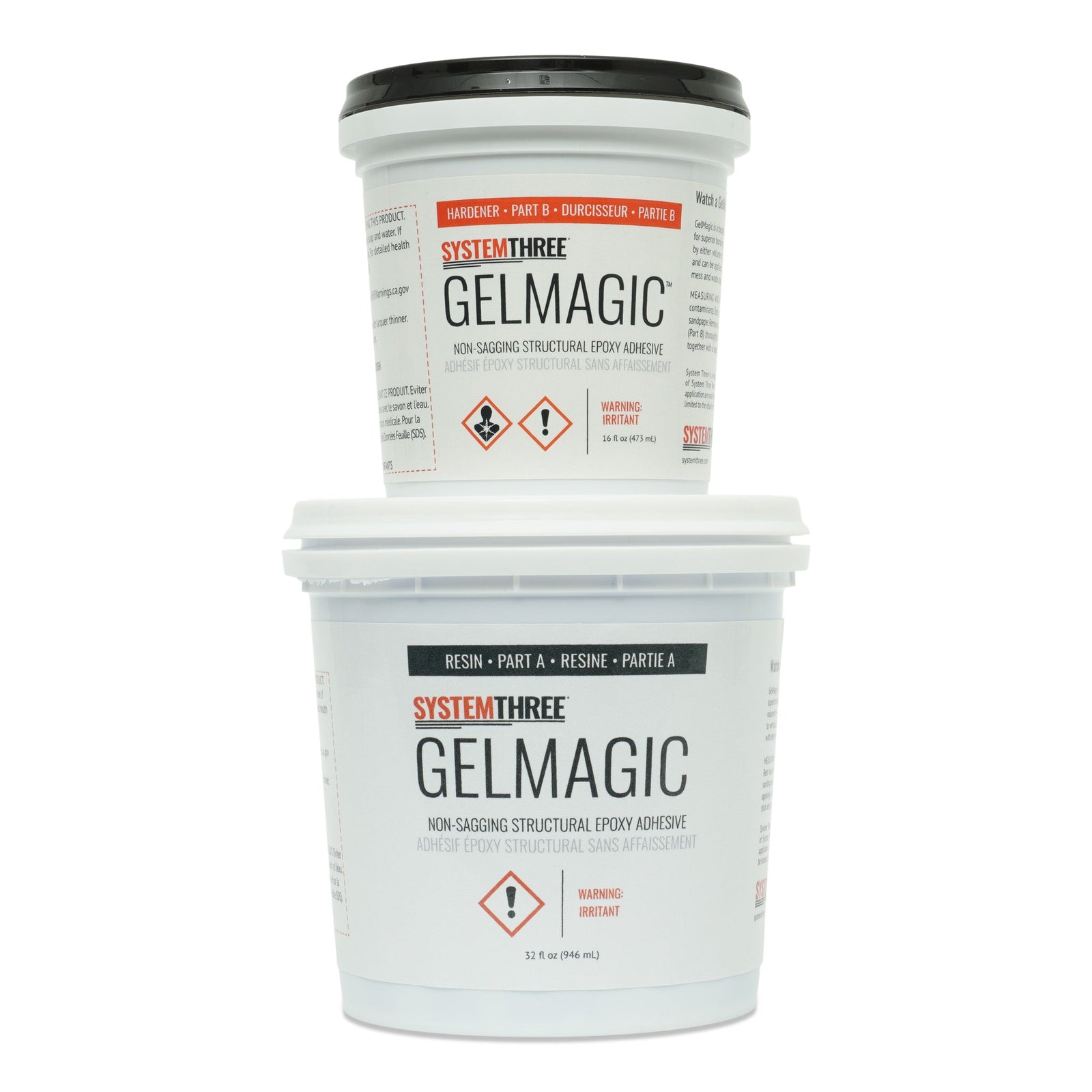

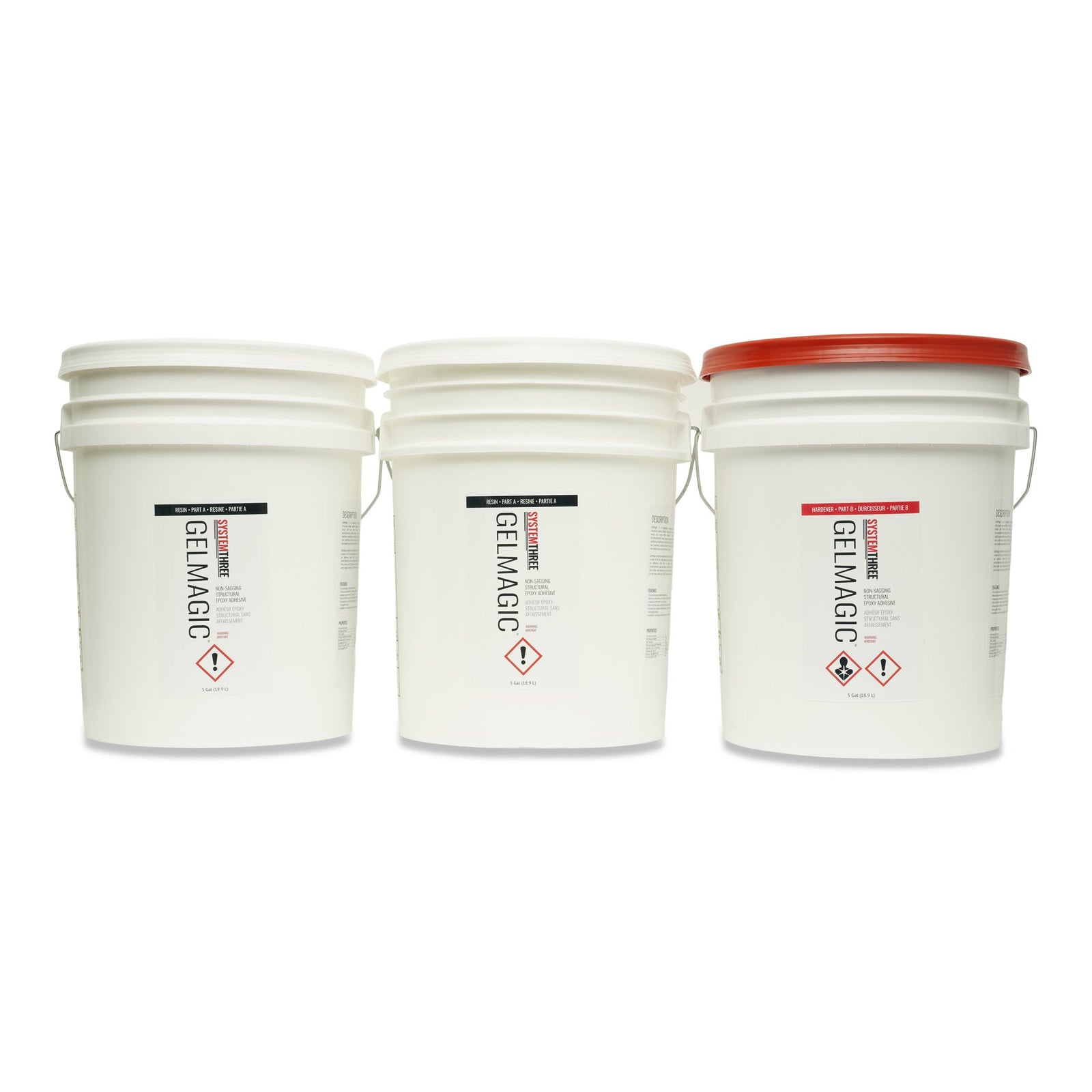

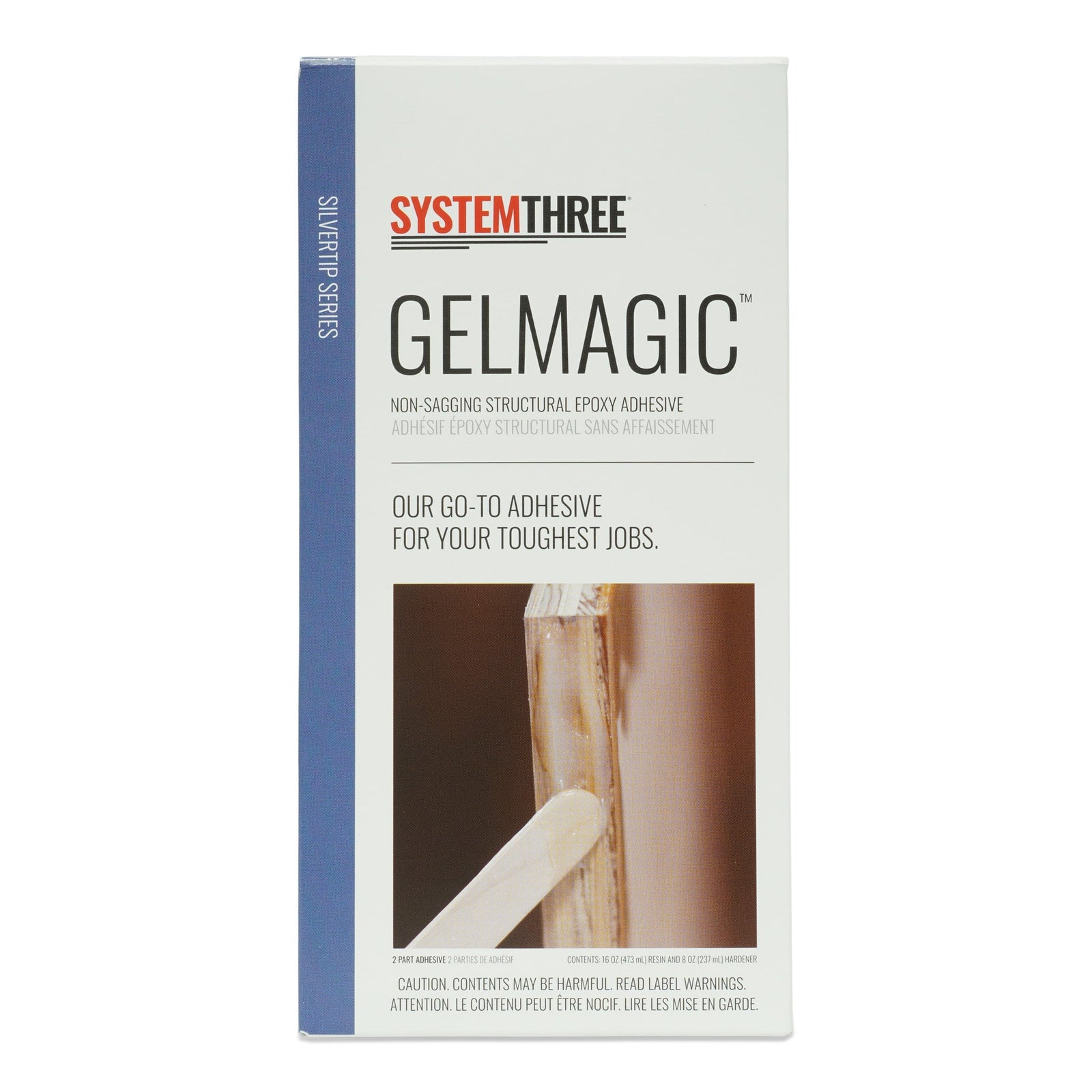

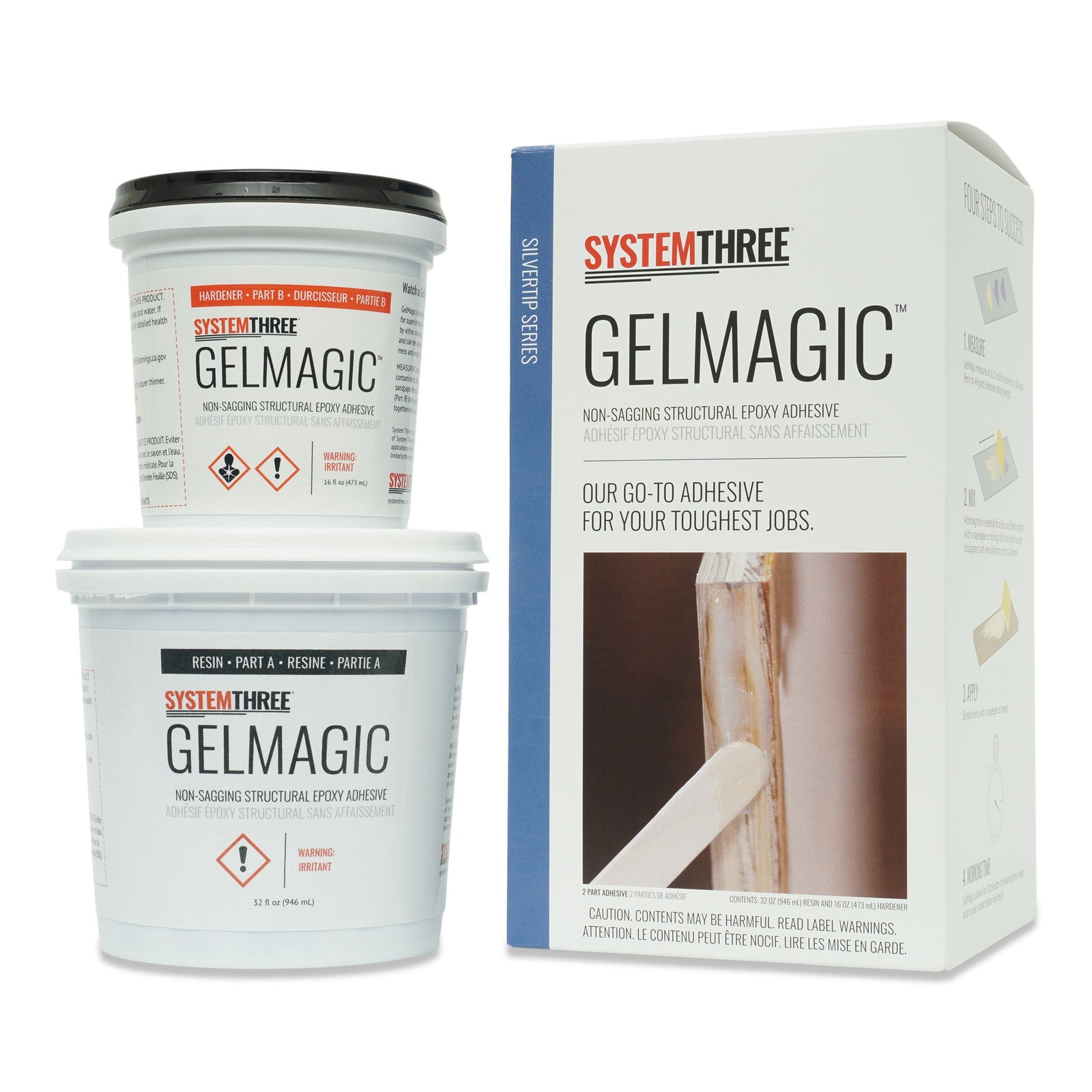

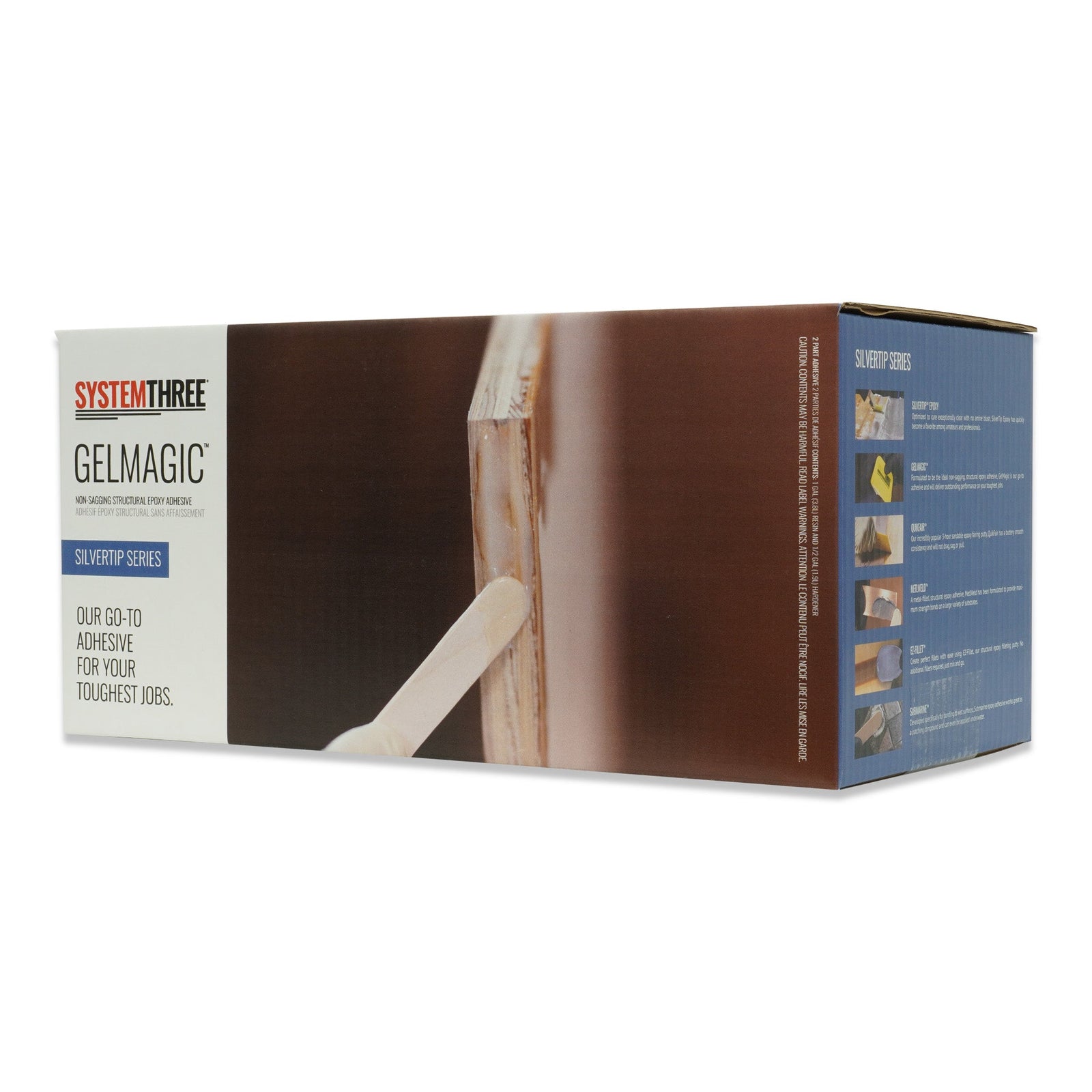

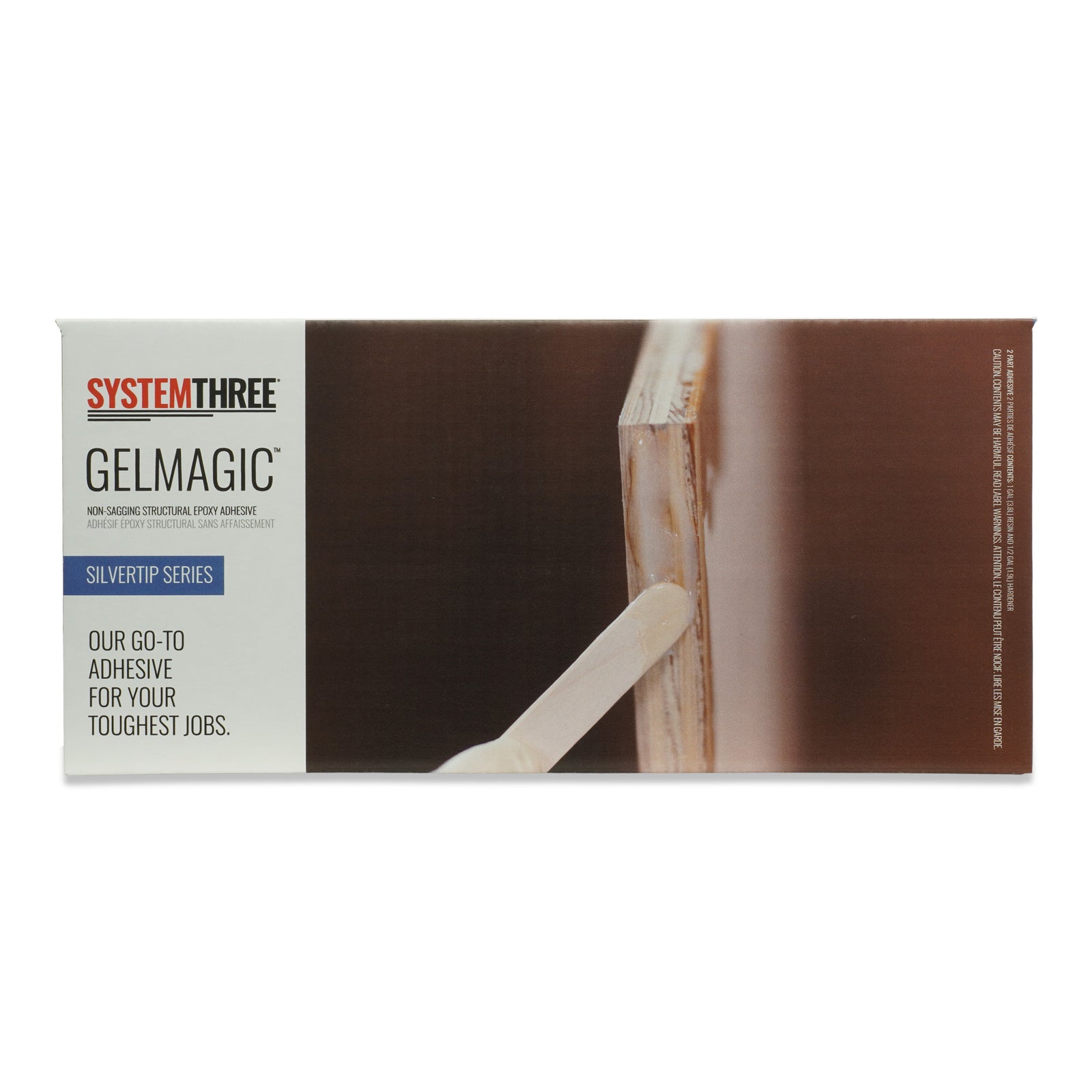

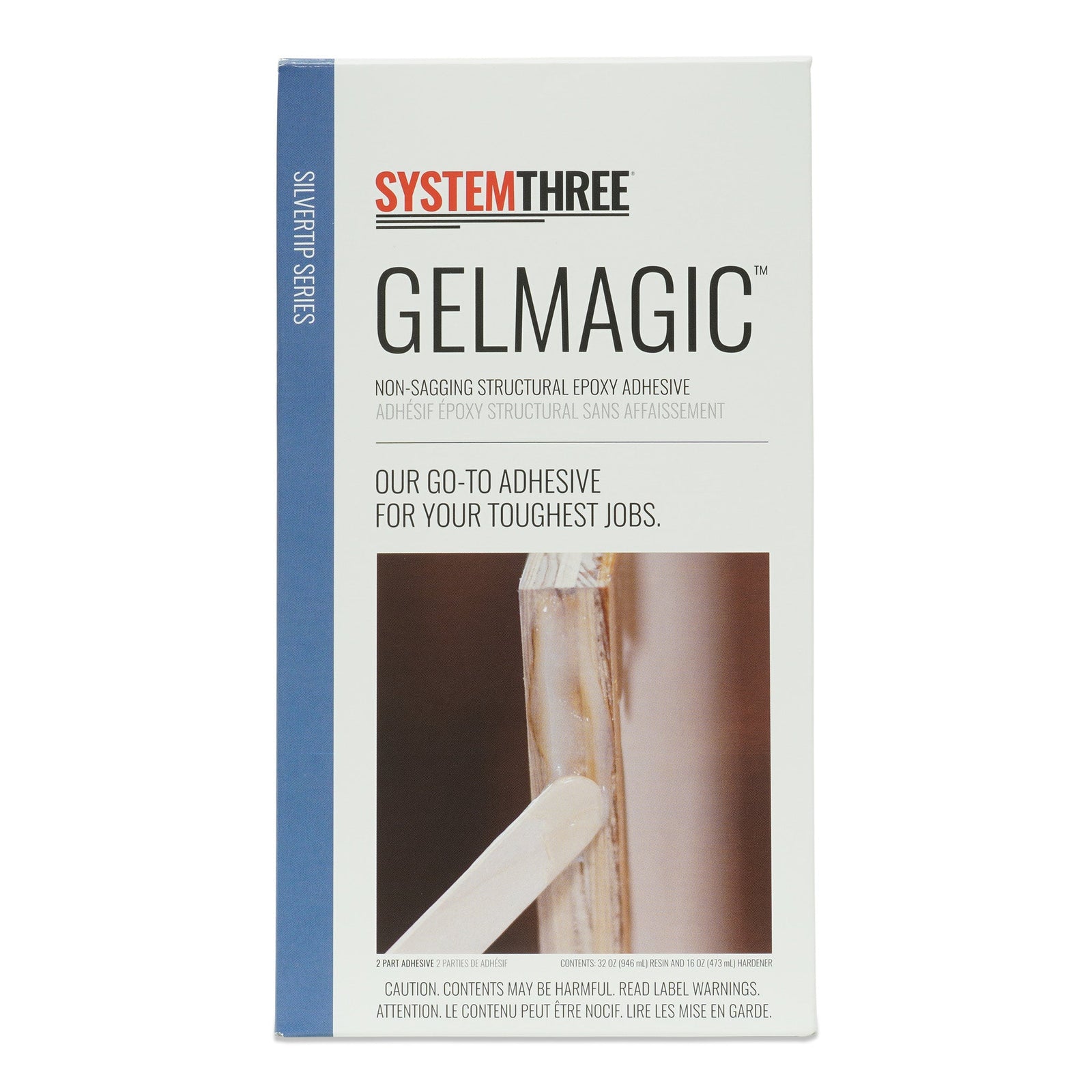

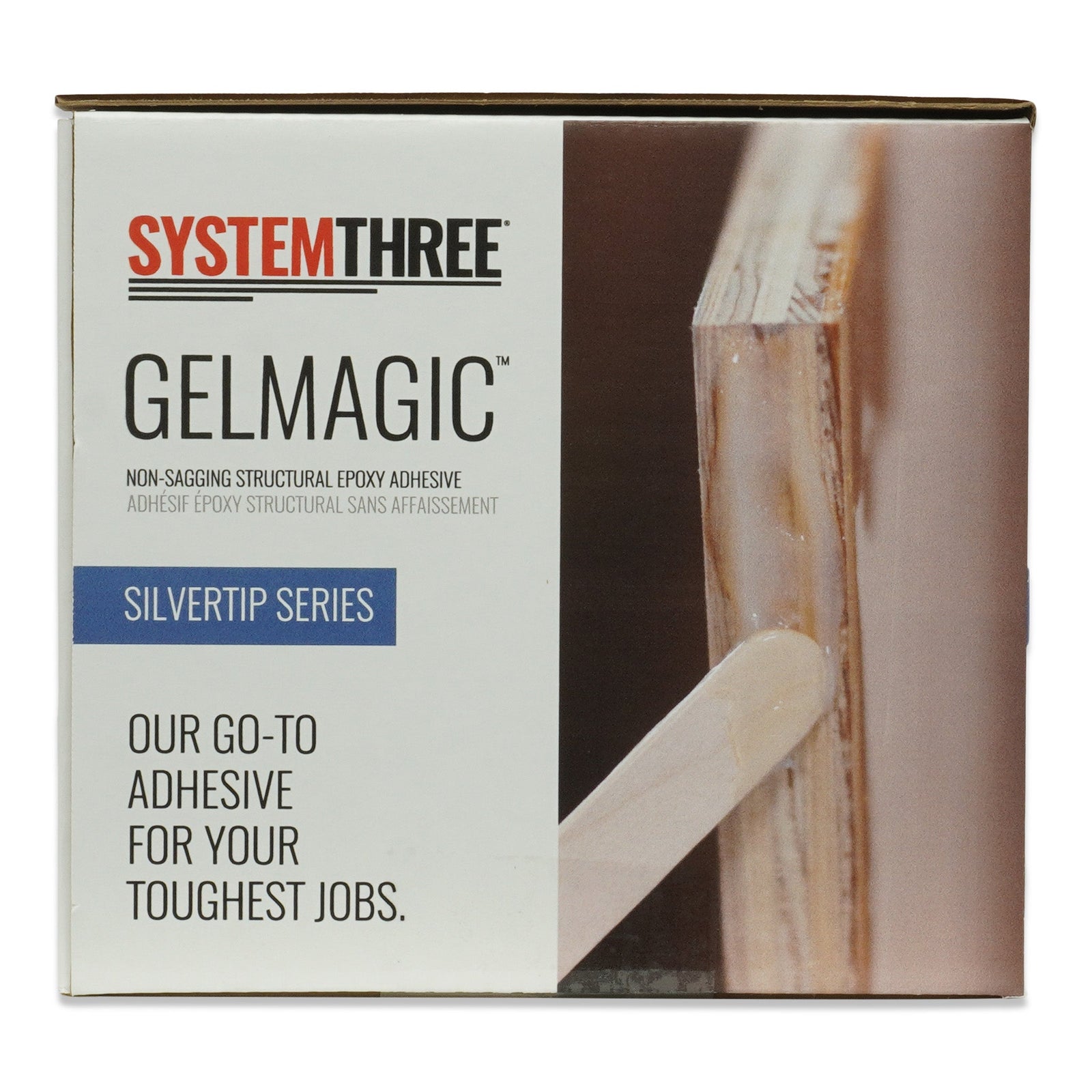

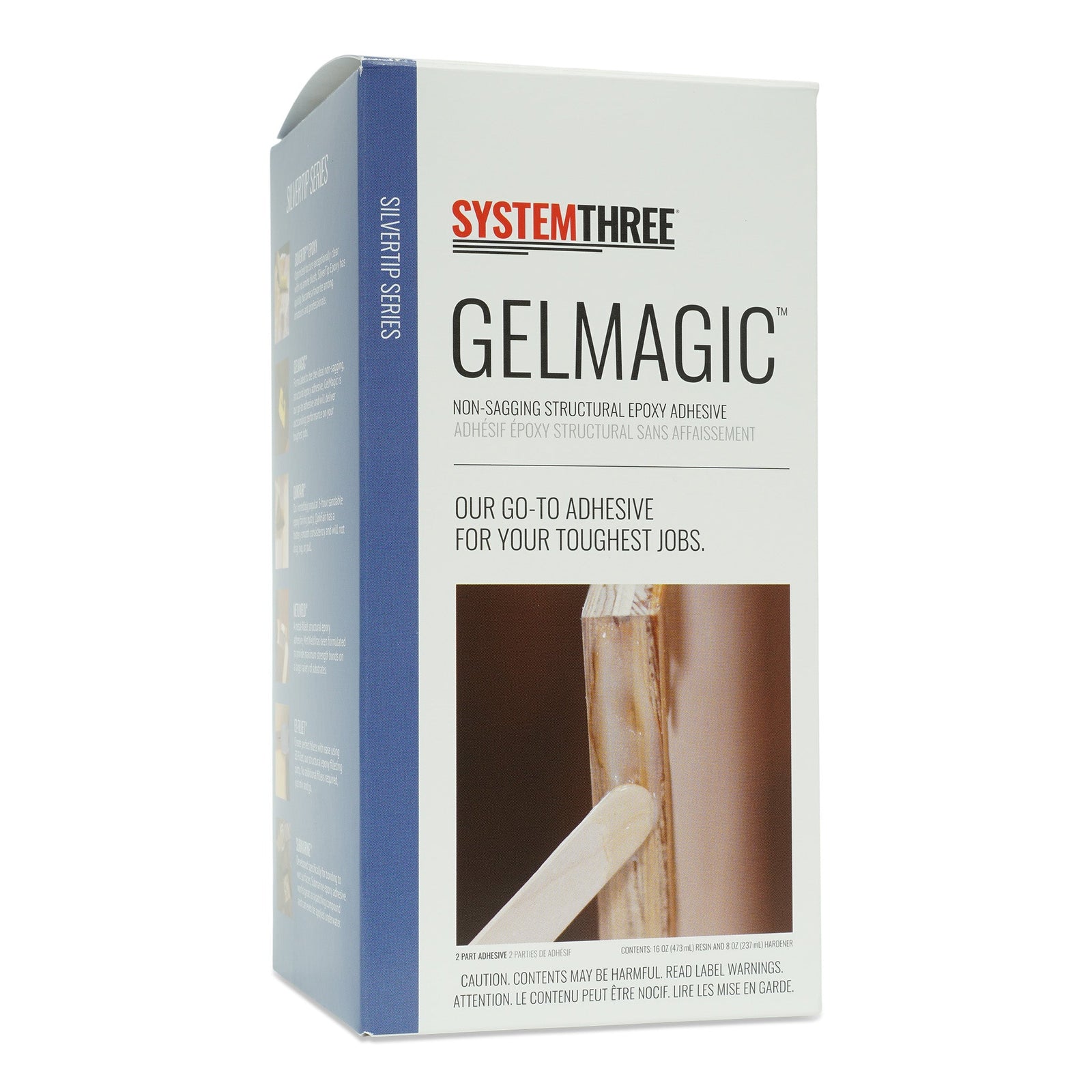

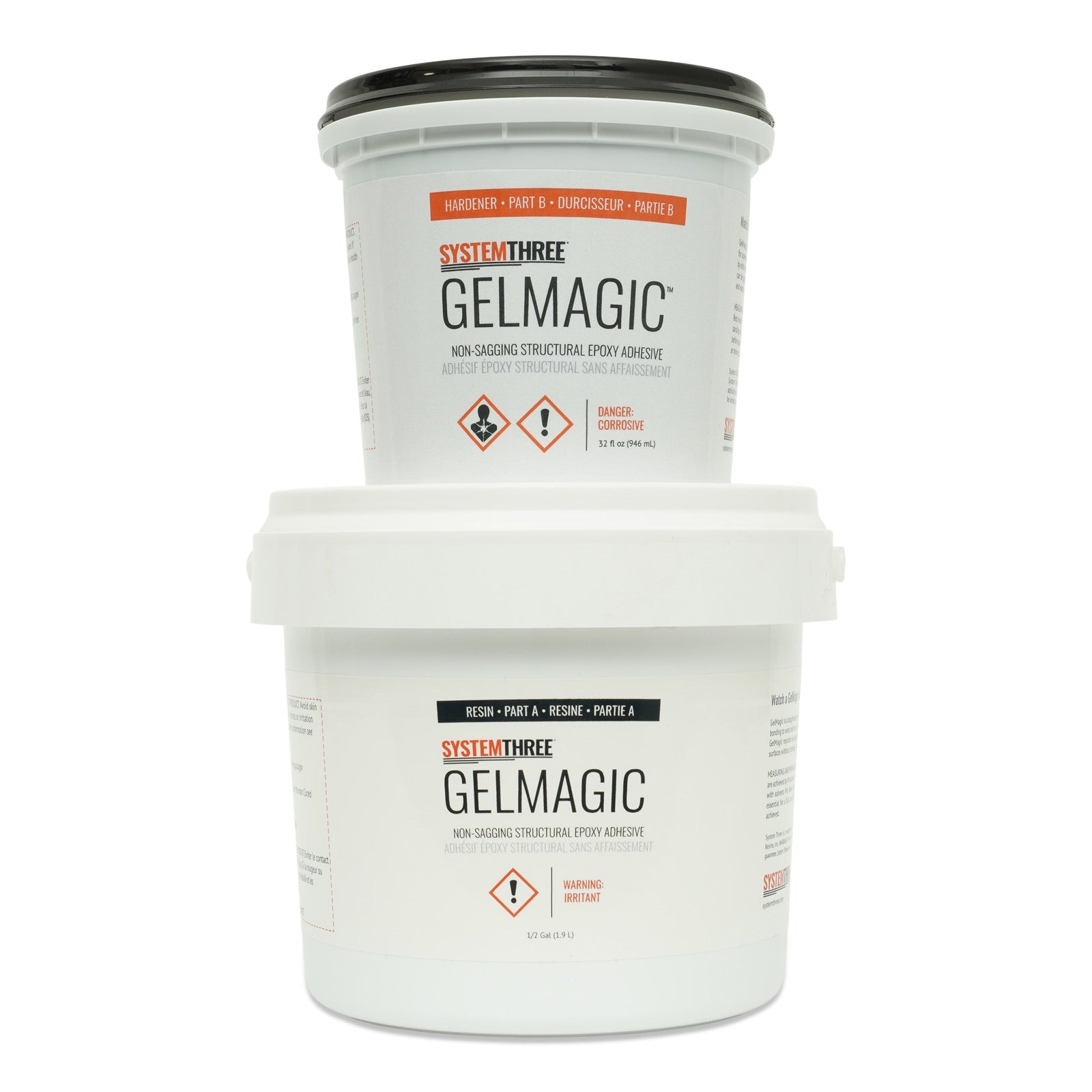

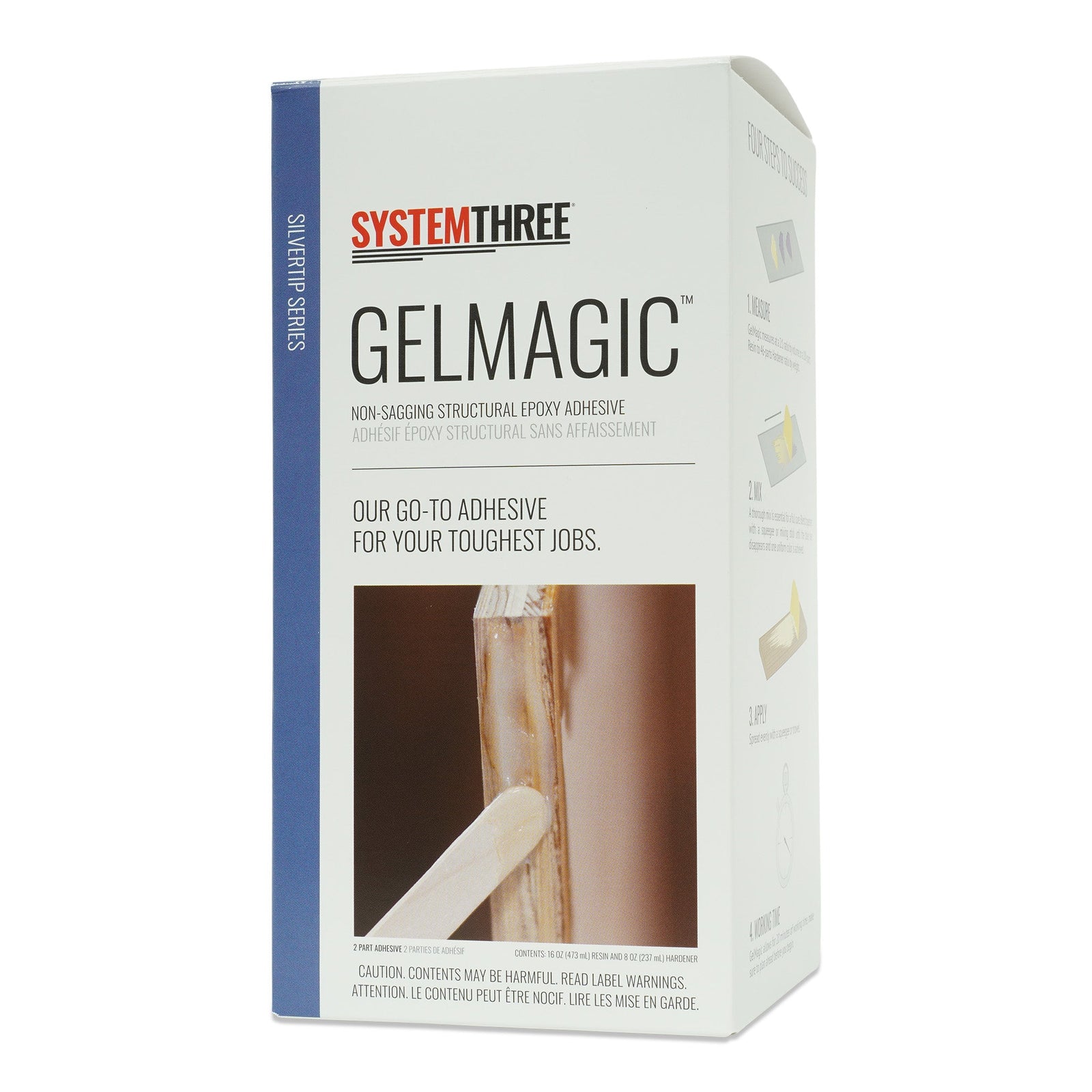

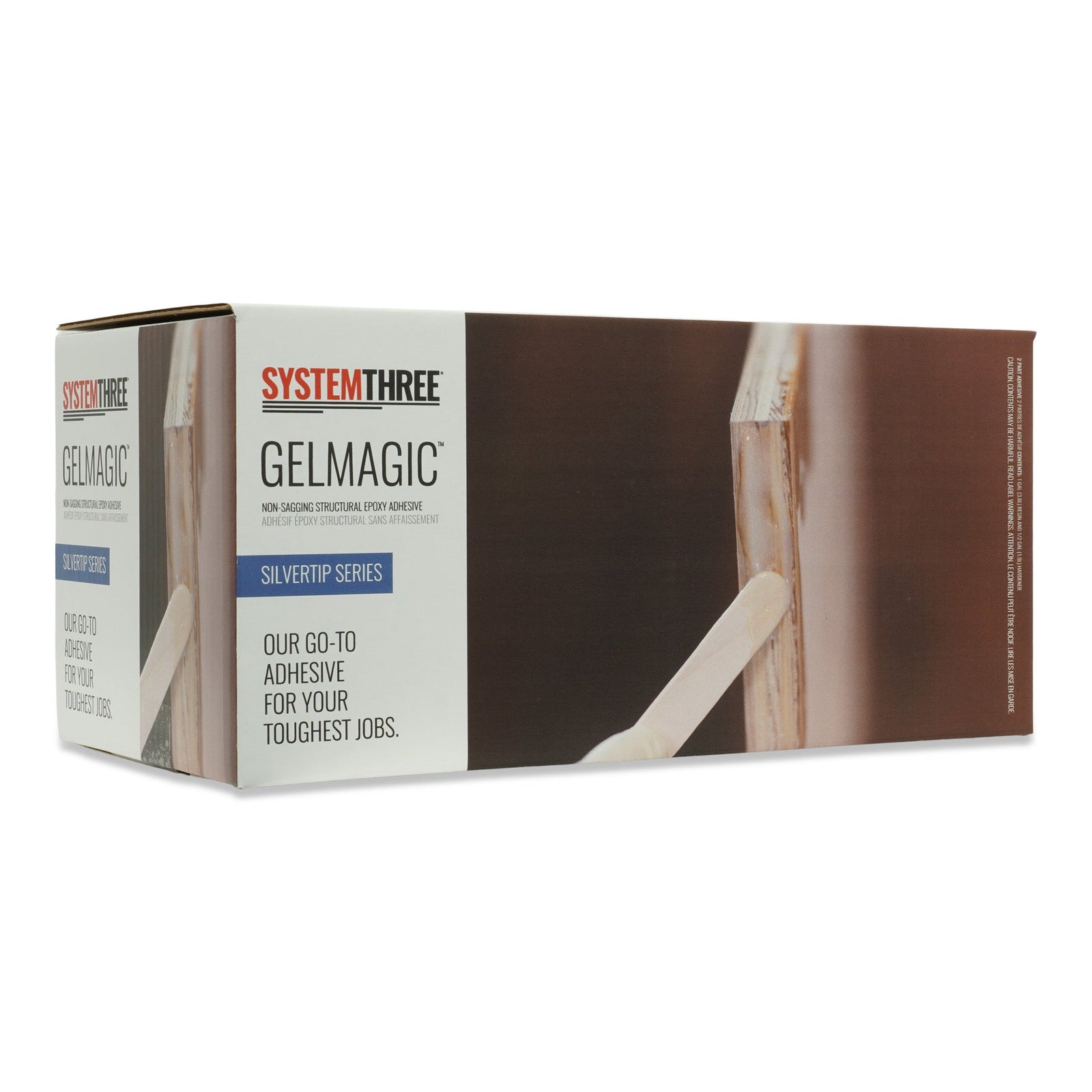

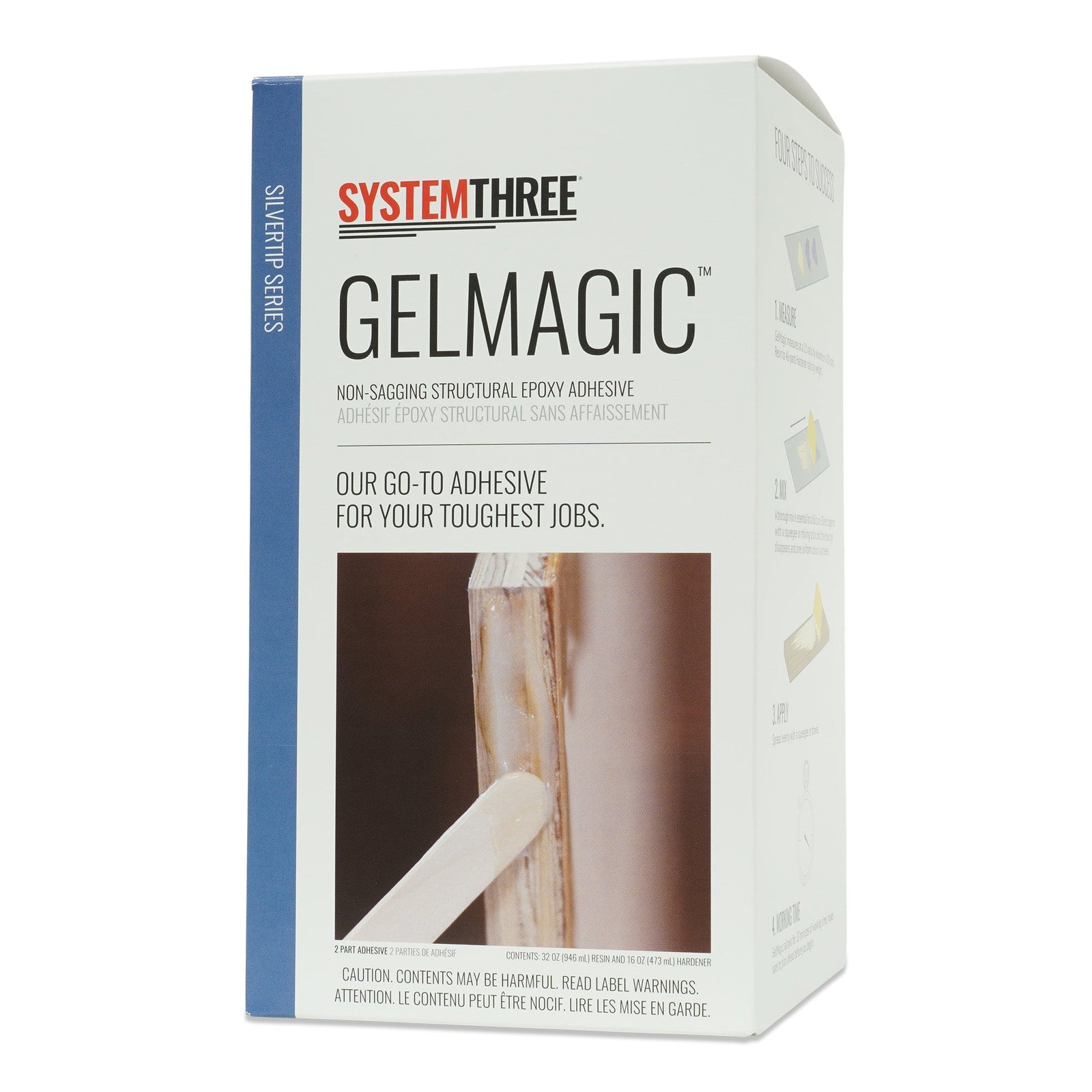

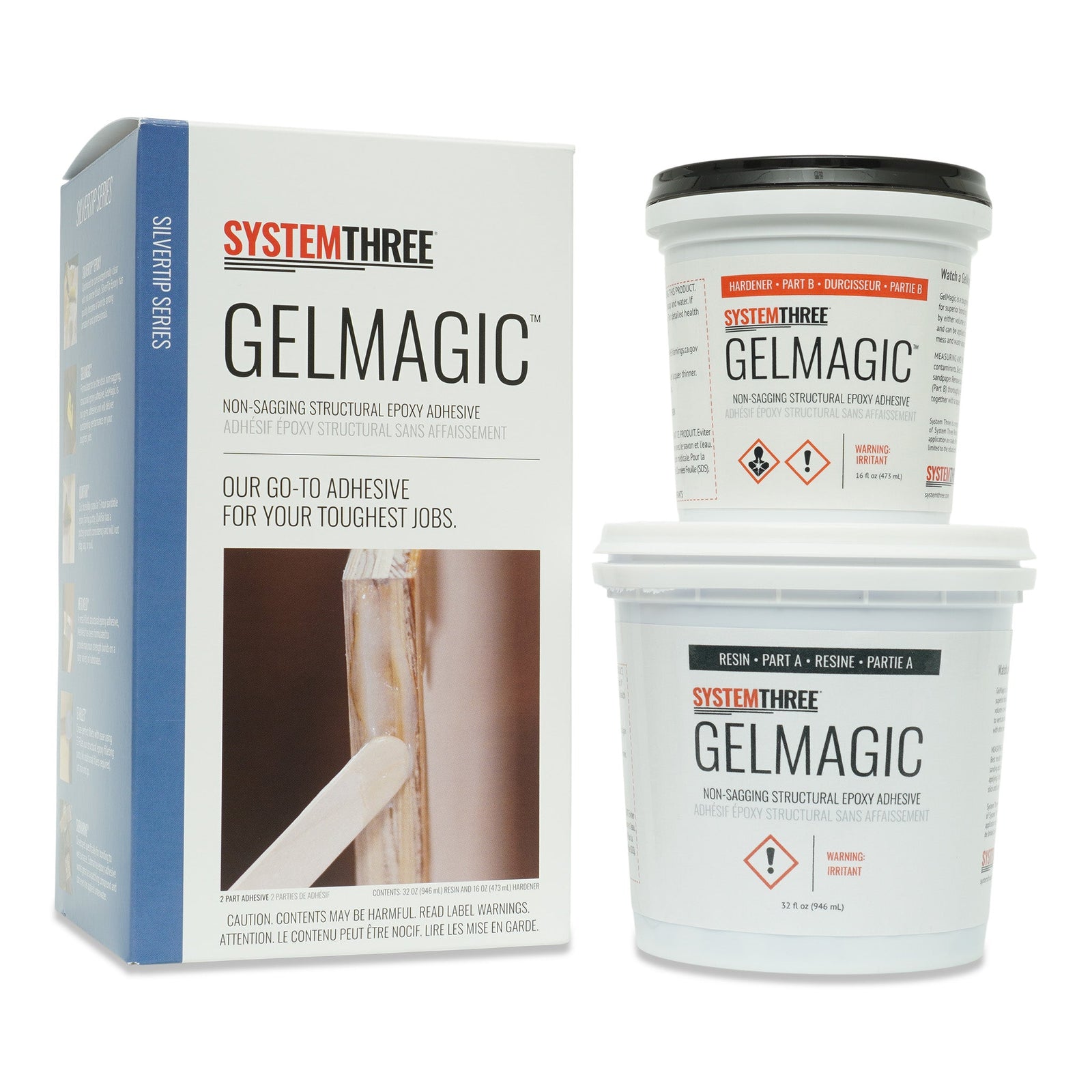

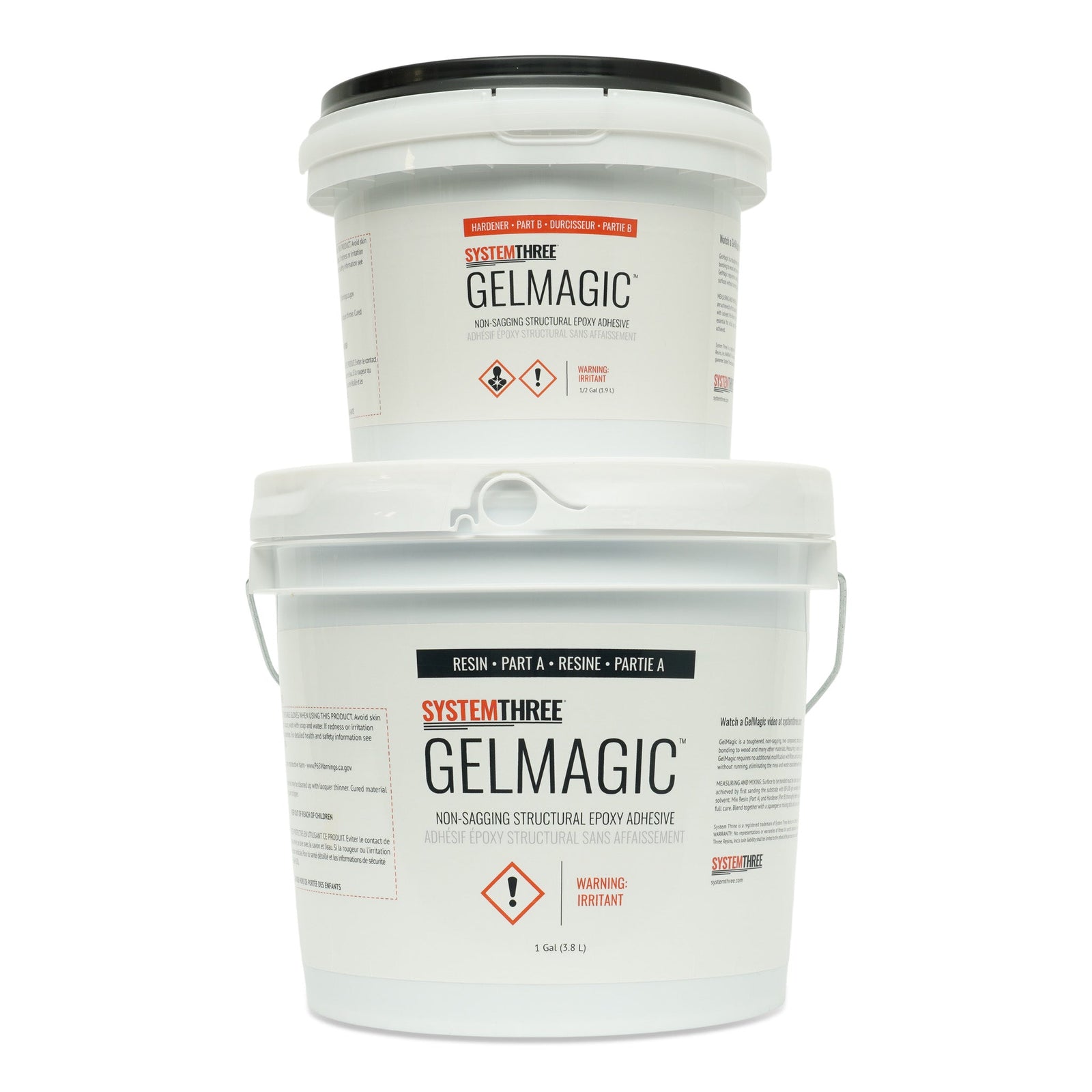

SilverTip GelMagic

Product Description

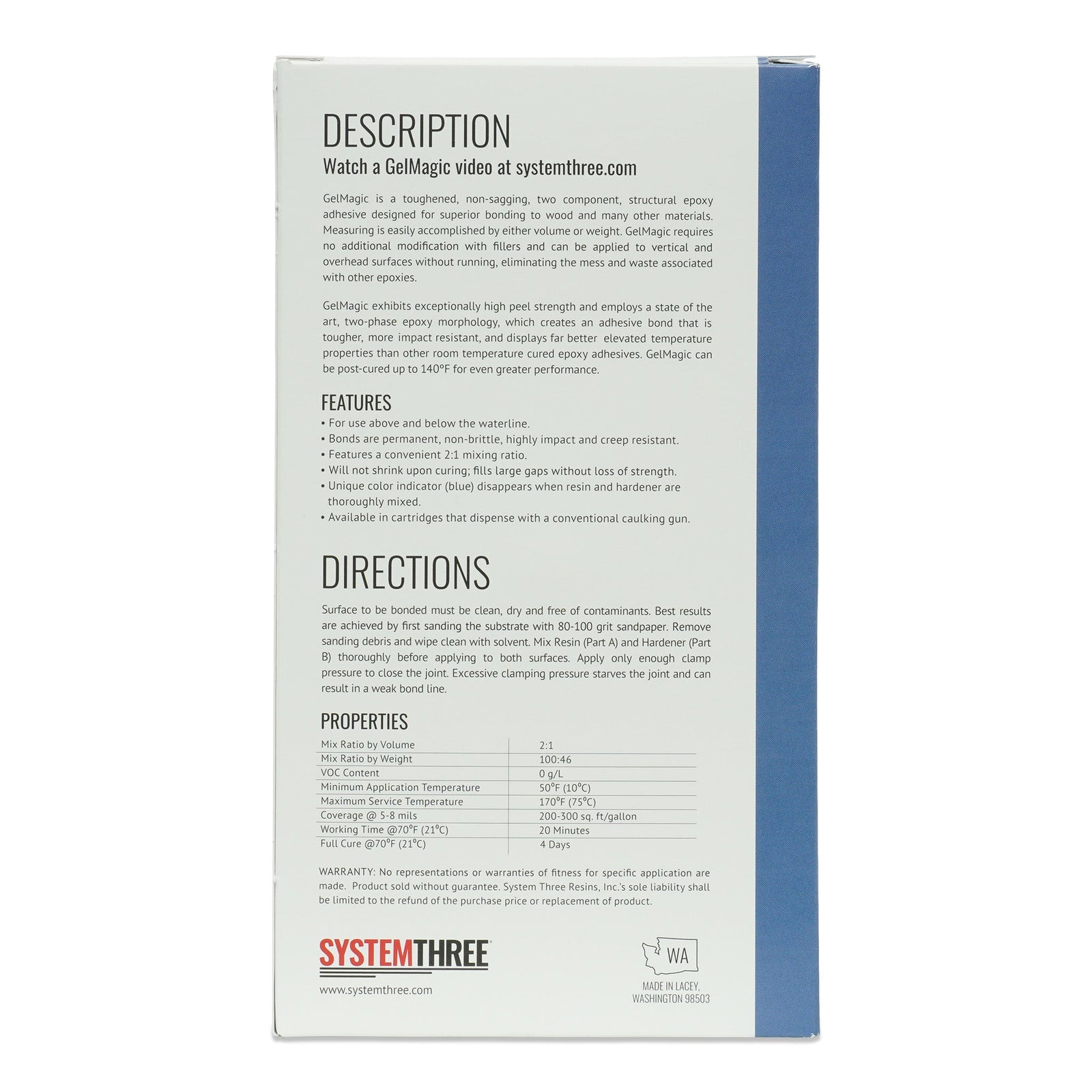

GelMagic is a toughened, non-sagging, two component, structural epoxy adhesive designed for superior bonding to wood and most porous materials. It is unique in that it starts as two self-leveling liquids, which form a soft, thixotropic, sag-resistant paste when mixed. Measuring is easily accomplished by either volume or weight. GelMagic requires no additional modification with fillers and can be applied to vertical and overhead surfaces without running, eliminating the mess and waste associated with other epoxies.

GelMagic exhibits exceptionally high peel strength and employs a state of the art, two-phase epoxy morphology, which creates an adhesive bond that is tougher, more resistant to embrittlement and has better elevated temperature properties than other room temperature cured epoxy adhesives. GelMagic can be post-cured up to 140ºF for even greater performance.

  • For use above and below the waterline.
  • Bonds are permanent, non-brittle, highly impact and creep resistant.
  • Features a convenient 2:1 mixing ratio.
  • Resin and hardener are in a liquid state for easy measuring and mixing.
  • After mixing, GelMagic forms a self thickening, "thixotropic”, easy-to-spread gel, that will not run or sag on vertical or overhead surfaces.
  • Will not shrink upon curing; fills large gaps without loss of strength.
  • Unique color indicator (blue) disappears when resin and hardener are thoroughly mixed.
  • Can be dispensed through most simple lever action, gear or displacement metering systems.
  • Available in cartridges that dispense with a conventional caulking gun.
Size
$ 9.95
Mix Ratio by Volume100:50
Mix Ratio by Weight100:44
Total Solids100%
Mixed Viscosity4,000 cps
Mixed ColorAmber
Coverage @ 250 microns (10 mils)See Appendix A
Maximum Service Temperature170°F (75°C)
Minimum Application Temperature50°F (10°C)
Lap-Shear Strength, psi.:Polyester Laminate: 2,800
Concrete: 1,100
Wood (Maple): 1,800
Aluminum: 2,200
Galvanized Steel: 1,900
Copper: 1,700
Gel Time @ 77°F (25°C)30 Minutes (100g mixture)
Tack Free Time @ 77°F (25°C)3 Hours

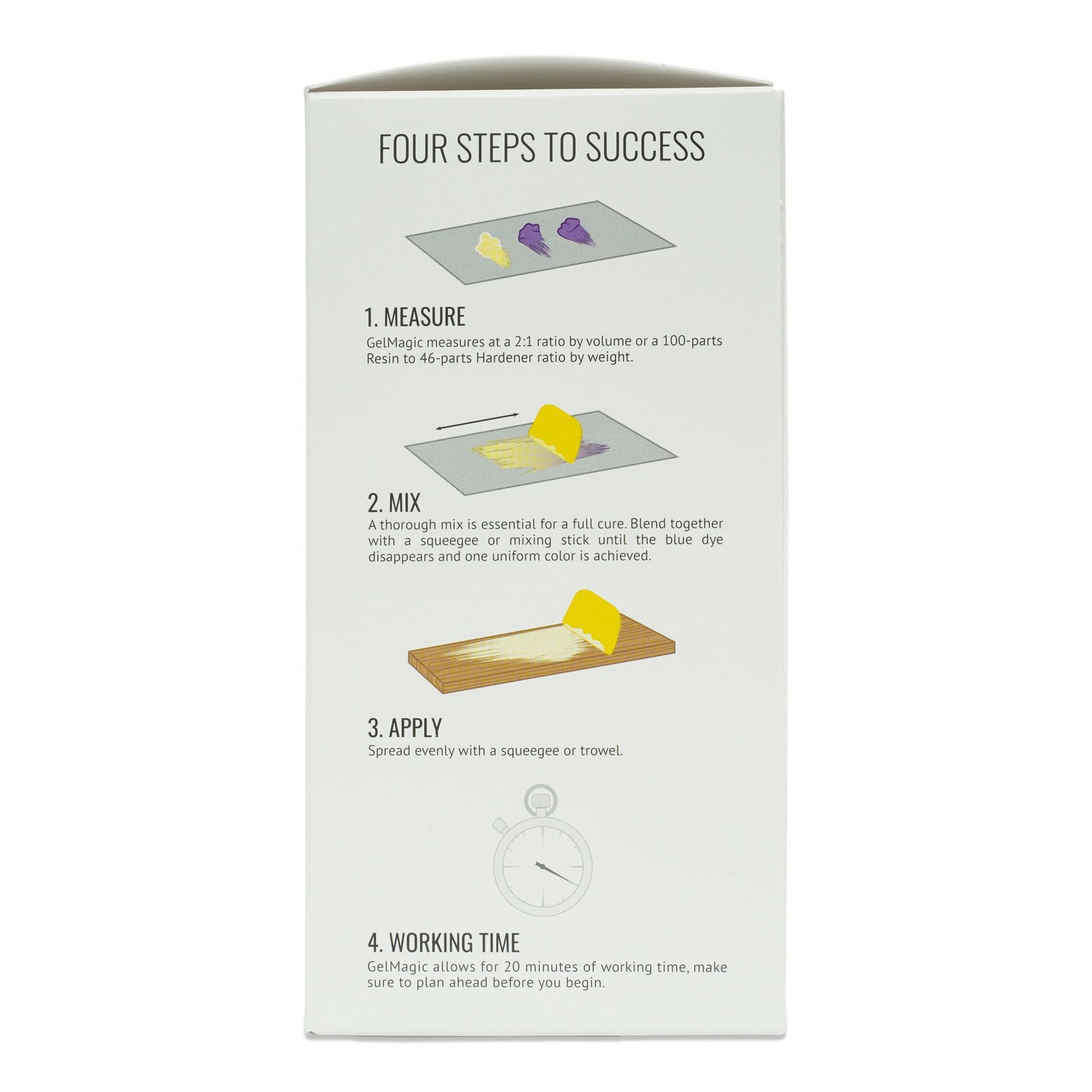

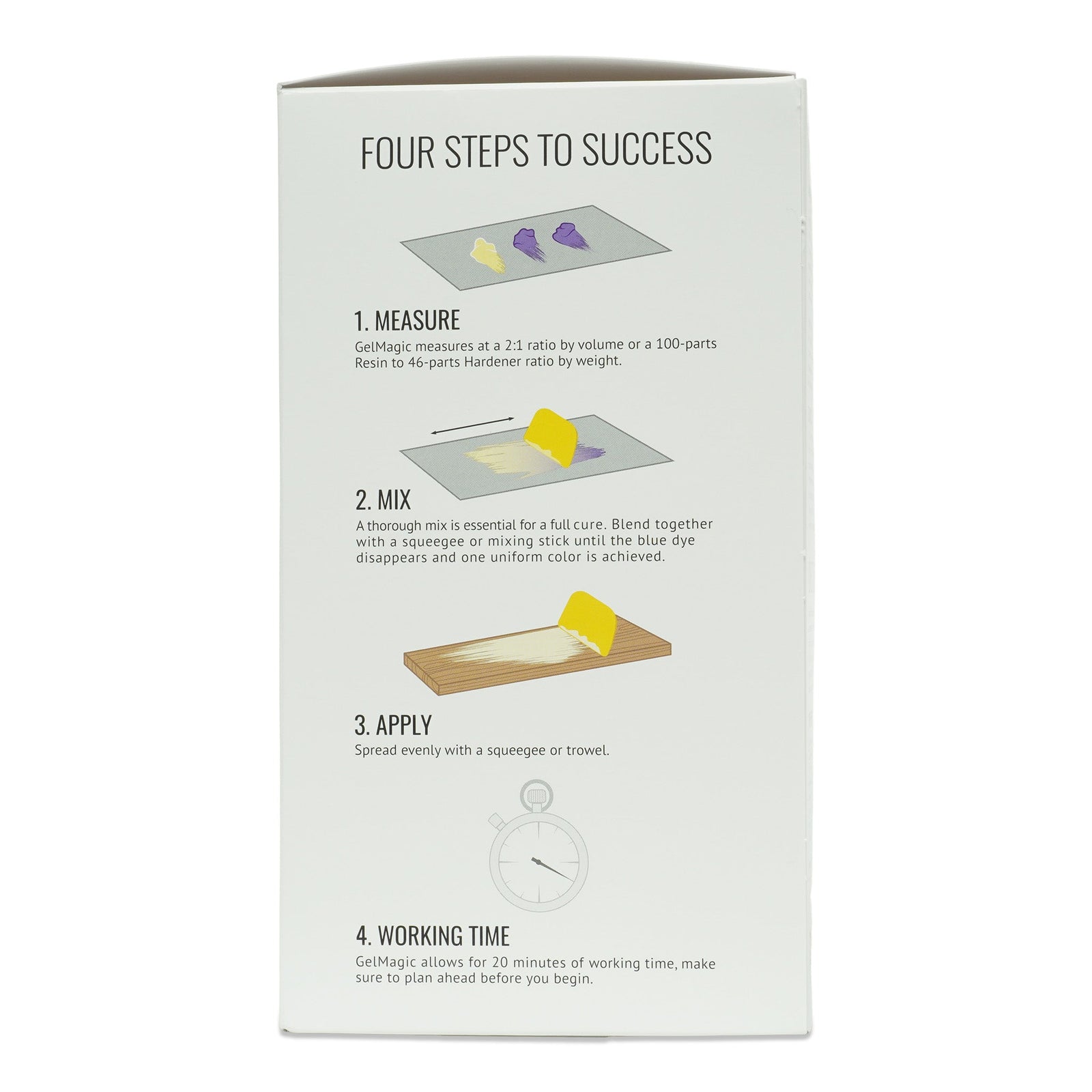

Application: Mixed at a 2 to 1 by volume ratio, GelMagic will cure at temperatures as low as 35ºF. Two color component system aids in determining a complete mix. Mixes to a pre-thickened, non-sagging state. No fillers needed. Recommended Uses: 100% waterproof, structural marine adhesive that forms superior bonds to wood, composites, aluminum, mild and stainless steel, concrete and most porous materials. Specifically designed for optimum adhesive properties. Not a general-purpose resin made for coating and then modified with filler to act as an adhesive. When fully cured, it is unaffected by water, oil, kerosene, and many other chemicals. It will not stain wood and is immune to fungus and rot. GelMagic is ideal for stitch-and-glue, plywood, strip built and glued lap strake construction. Also use GelMagic as a high strength, gap filling, waterproof adhesive for general woodworking and architectural applications.
