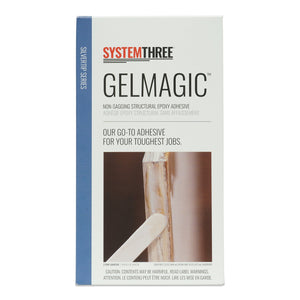

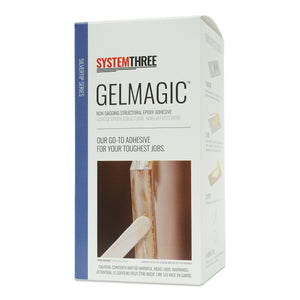

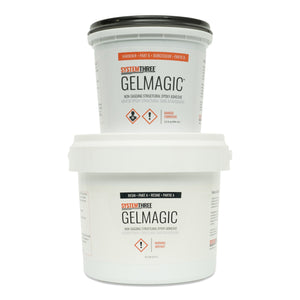

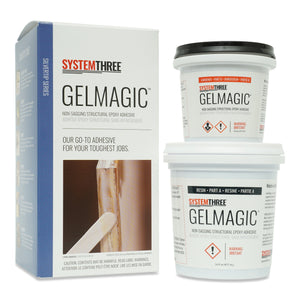

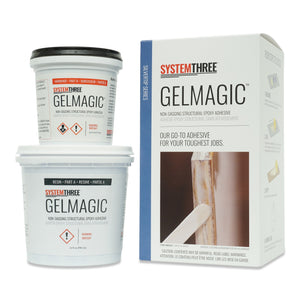

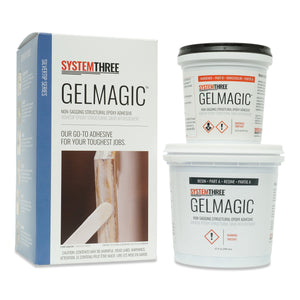

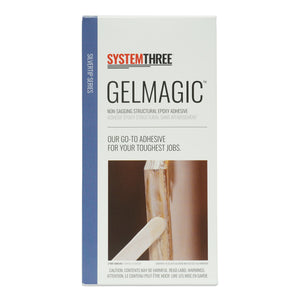

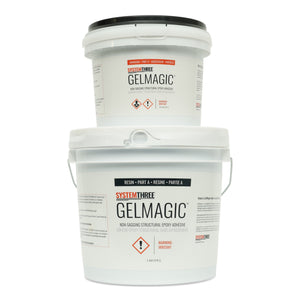

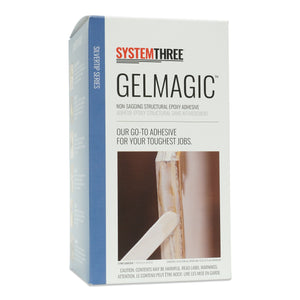

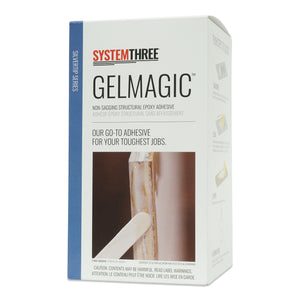

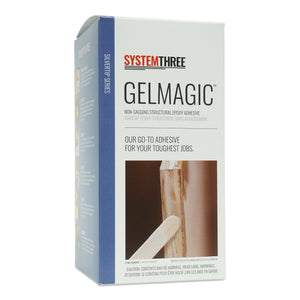

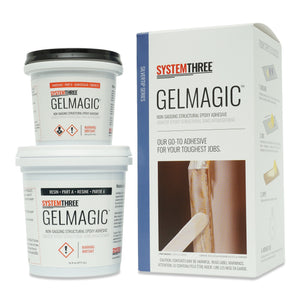

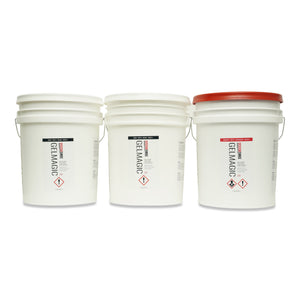

SilverTip GelMagic

Product Description

GelMagic is a toughened, non-sagging, two component, structural epoxy adhesive designed for superior bonding to wood and most porous materials. Measuring is easily accomplished by either volume or weight. GelMagic requires no additional modification with fillers and can be applied to vertical and overhead surfaces without running, eliminating the mess and waste associated with other epoxies.

GelMagic exhibits exceptionally high peel strength and employs a state of the art, two-phase epoxy morphology, which creates an adhesive bond that is tougher, more resistant to embrittlement and has better elevated temperature properties than other room temperature cured epoxy adhesives. GelMagic can be post-cured up to 140ºF for even greater performance.

  • For use above and below the waterline.
  • Bonds are permanent, non-brittle, highly impact and creep resistant.
  • Features a convenient 2:1 mixing ratio.
  • Will not shrink upon curing; fills large gaps without loss of strength.
  • Unique color indicator (blue) disappears when resin and hardener are thoroughly mixed.
  • Can be dispensed through most simple lever action, gear or displacement metering systems.

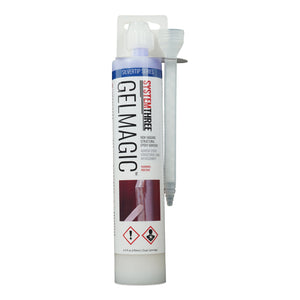

  • Available in cartridges that dispense with a conventional caulking gun.
$ 26.95
Mix Ratio by Volume100:50
Mix Ratio by Weight100:46
Total Solids100%
Mixed Viscosity80,000 cps
Mixed ColorAmber
CoverageSee Product Usage Estimations Chart
Maximum Service Temperature170°F (75°C)
Minimum Application Temperature50°F (10°C)
Lap-Shear Strength, psi.:Polyester Laminate: 2,800
Concrete: 1,100
Wood (Maple): 1,800
Aluminum: 2,365
Galvanized Steel: 1,900
Copper: 2,587
Brass: 2,624
Mild Steel: 3,678
Gel Time @ 77°F (25°C)30 Minutes (100g mixture)
Tack Free Time @ 77°F (25°C)3 Hours

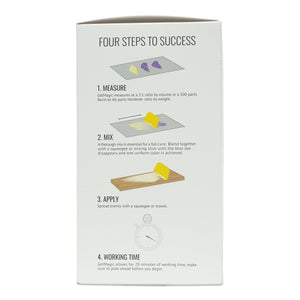

Application: Mixed at a 2 to 1 by volume ratio, GelMagic will cure at temperatures as low as 35ºF. Two color component system aids in determining a complete mix. Mixes to a pre-thickened, non-sagging state. No fillers needed. Recommended Uses: 100% waterproof, structural marine adhesive that forms superior bonds to wood, composites, aluminum, mild and stainless steel, concrete and most porous materials. Specifically designed for optimum adhesive properties. Not a general-purpose resin made for coating and then modified with filler to act as an adhesive. When fully cured, it is unaffected by water, oil, kerosene, and many other chemicals. It will not stain wood and is immune to fungus and rot. GelMagic is ideal for stitch-and-glue, plywood, strip built and glued lap strake construction. Also use GelMagic as a high strength, gap filling, waterproof adhesive for general woodworking and architectural applications.
